Network Interfaces

A network interface is the connection between a device and a network. By monitoring interfaces, you can get real-time availability statistics and detailed analysis of data from switches, routers, firewalls, and other SNMP-enabled devices.

Table of contents

Where are network interfaces listed in Site24x7?

Log in to your Site24x7 account and navigate to NetworkNetwork Interfaces

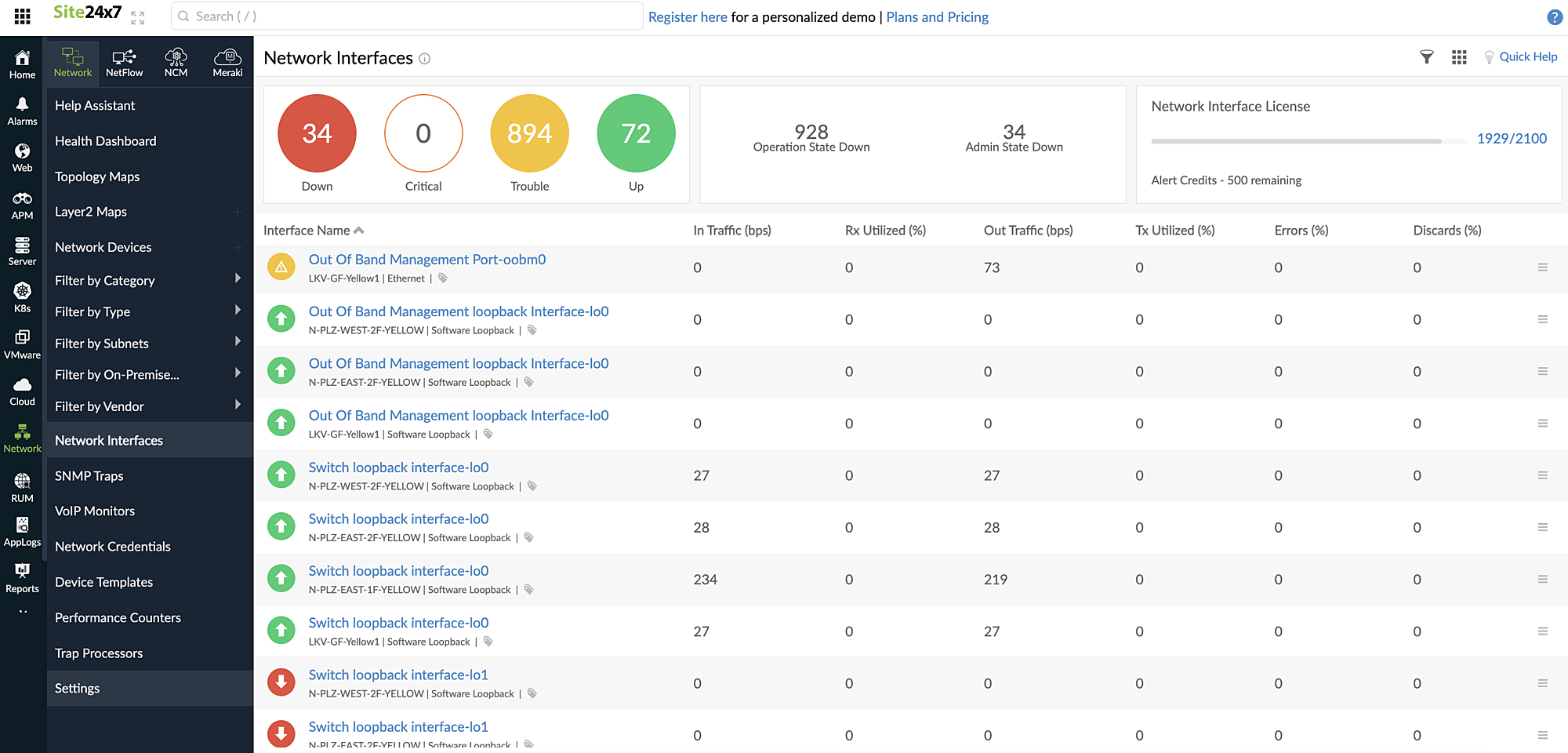

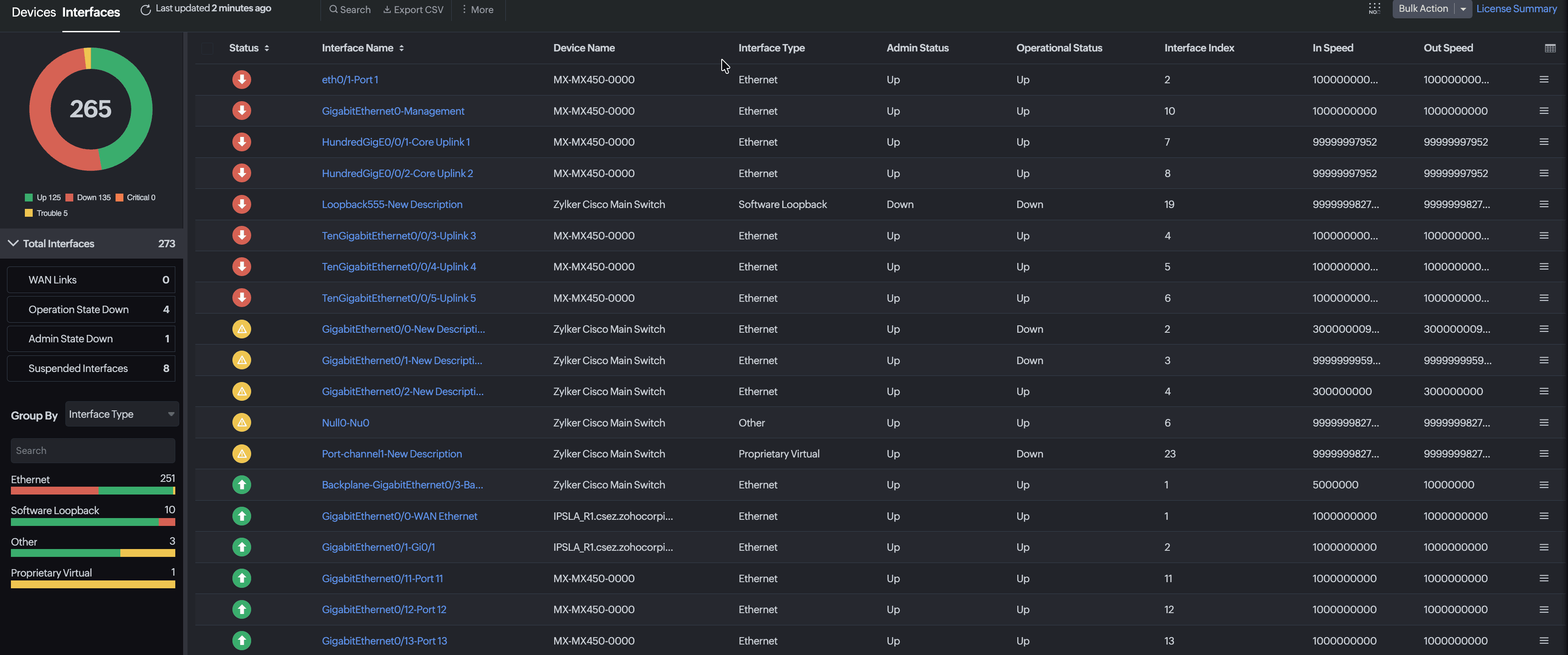

Network Interfaces view

You can also view the network interfaces corresponding to a particular network device. To do this, navigate to NetworkNetwork Devices. From there, click on the device you want and select the Interfaces tab (the second from the left). Check out the following image to get a better idea of where to go.

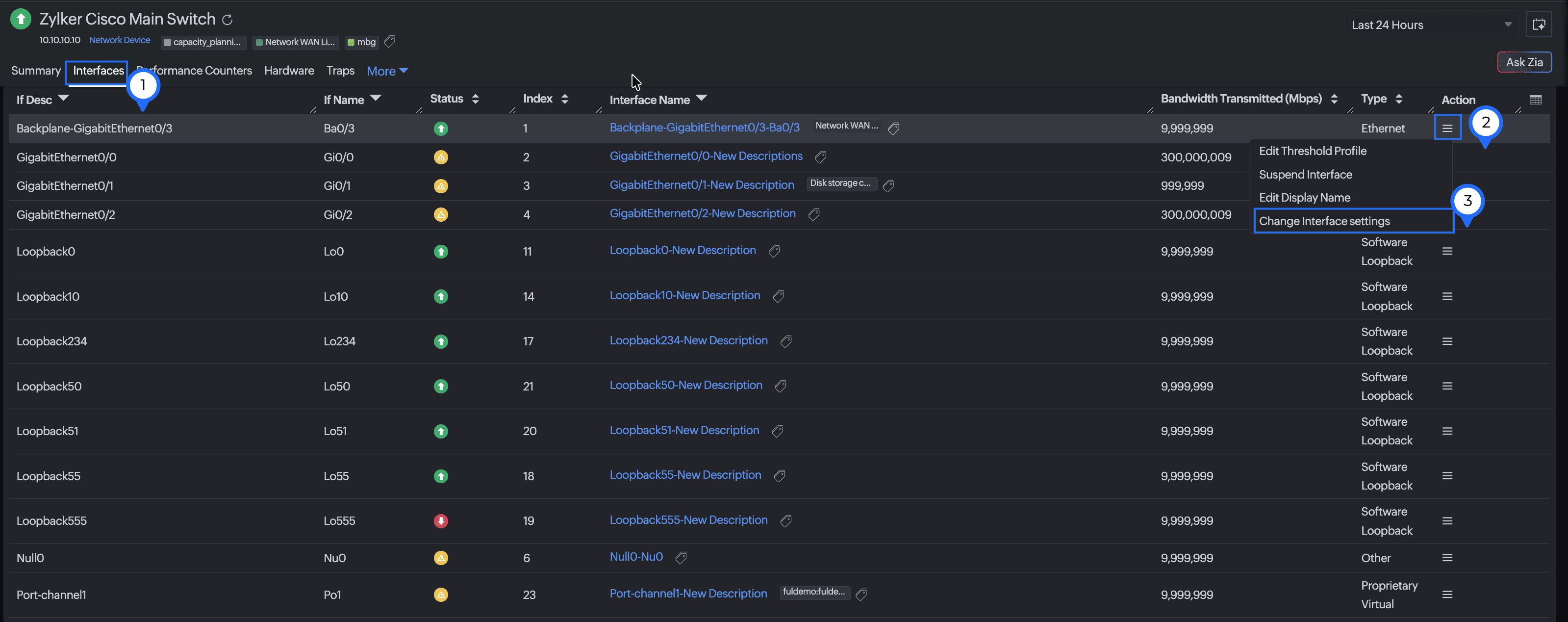

Interfaces tab

How does the Network Interfaces page help me?

This page lists the state of interfaces as DOWN, UP, or TROUBLE based on the most recent poll. Network interfaces that have their admin and operation states as Down are also listed.

You can view time period-based interface data from the Interfaces tab inside the network device's dashboard.

Operation state: The current running state.

Admin state: The configured state of an interface.

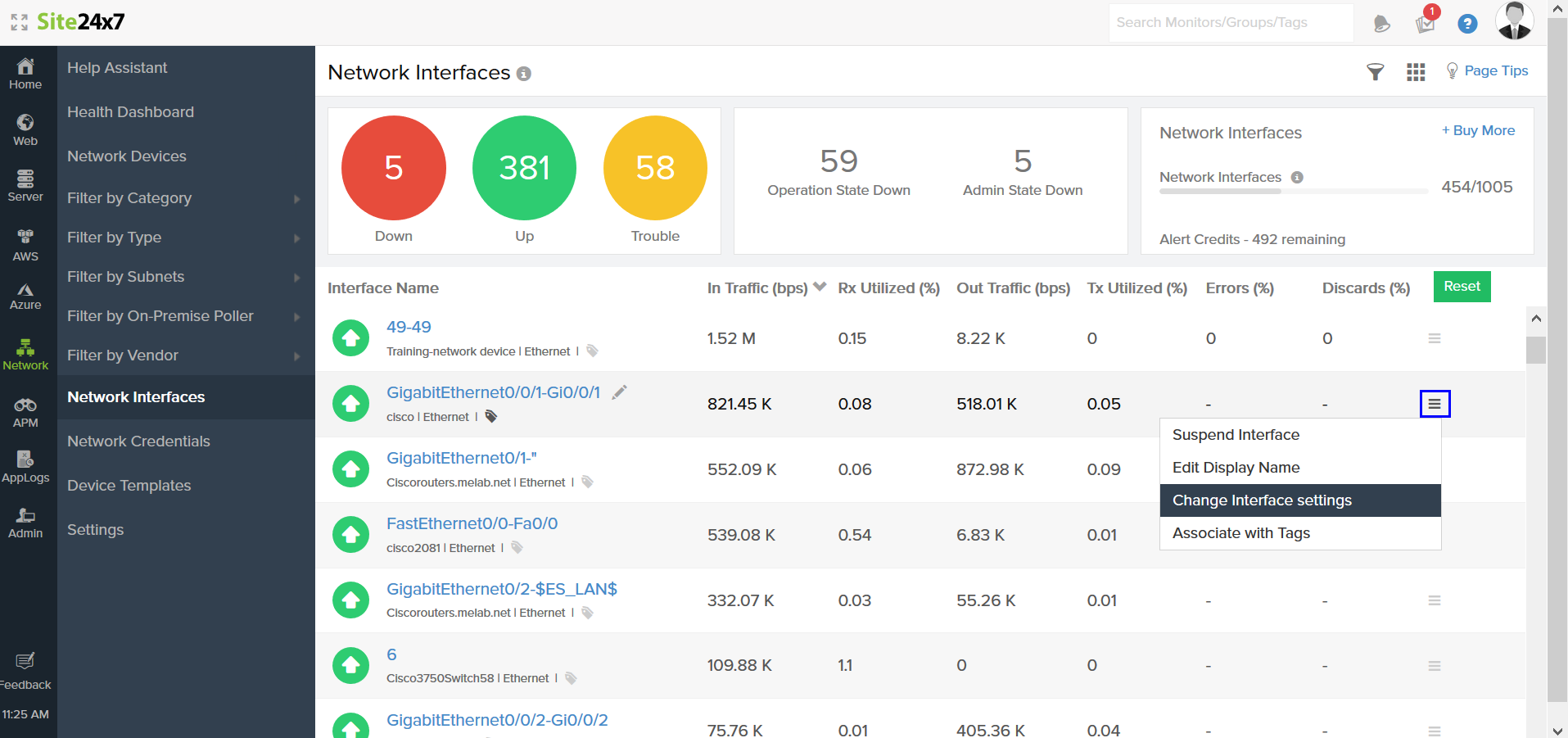

Click the hamburger icon icon next to a network interface to suspend it, edit the display name, change the interface settings, and associate tags

Interface settings

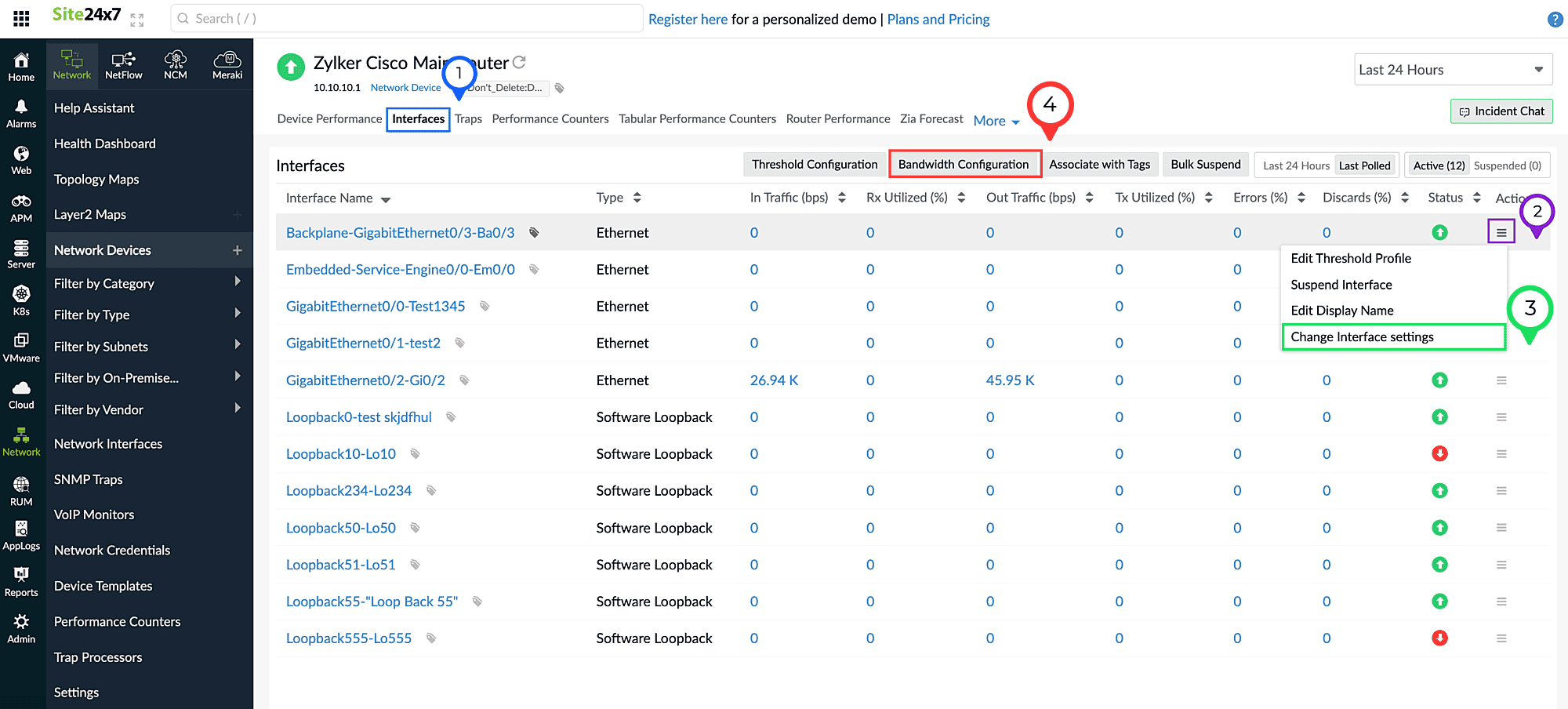

How do I change interface settings?

  1. Go to NetworkNetwork Interfaces.
  2. Click the hamburger icon icon near the interface whose bandwidth needs to be updated.
  3. Choose Change Interface Settings from the drop-down list.
  4. Perform the following steps:
    • Interface list: Choose the required interfaces from the drop-down list.
    • Traffic counter: Choose a counter based on your specific needs.
    • Out speed: Enter the out speed in Mbps.
    • In speed: Enter the in speed in Mbps.
  5. Click Save.

    Change Interface Settings

How are network interfaces organized?

Tags are unique labels that allow you to assign custom metadata to your monitors for better classification and organization. You can also assign unique colors to each tag to easily identify and sort them.

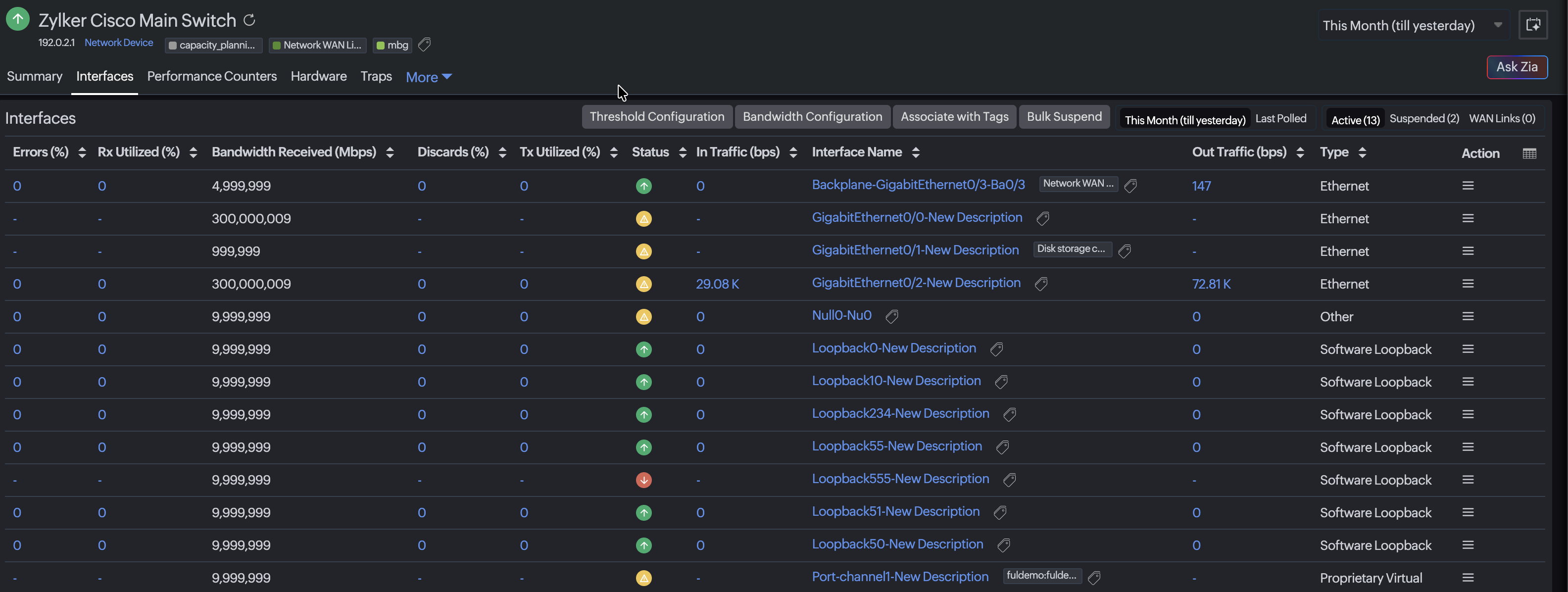

Network interfaces are enabled to support tags, which can be viewed by clicking on the interface tab inside the network device's dashboard. You can associate predefined tags or create new ones; aside from that, you can also filter your network interfaces based on these tags in the Network Interfaces view.

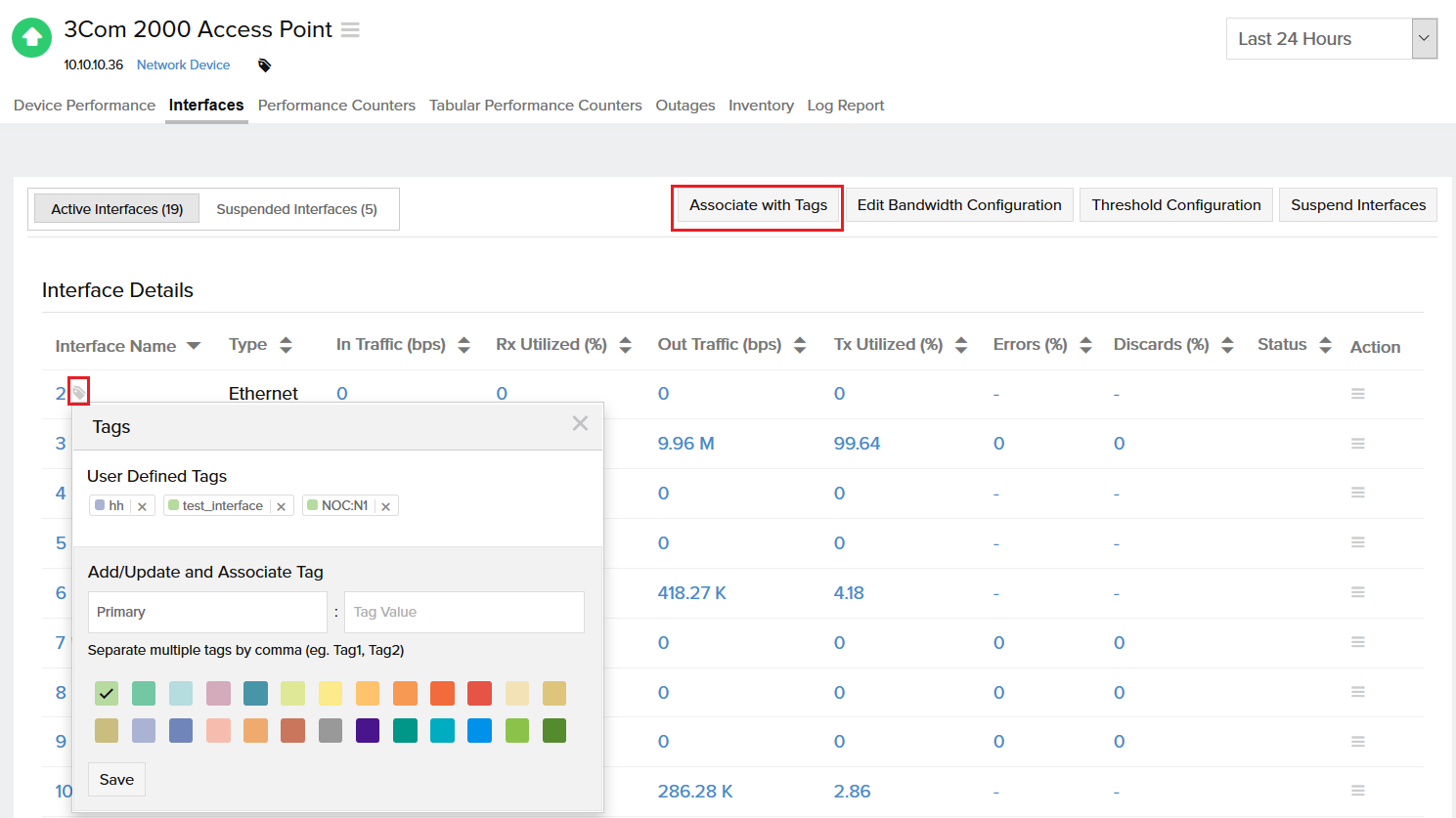

Associate tags

What is the NOC view?

The NOC view for network interfaces displays all the network interfaces as color-coded tiles. Click the NOc view icon icon near Page Tips on the Network Interfaces page for the NOC view. Statuses are displayed as green for Up, red for Down, and yellow for Trouble, and you can filter the view based on these statuses. Every tile displays the interface name, the corresponding device name in brackets, and the reason behind the status.

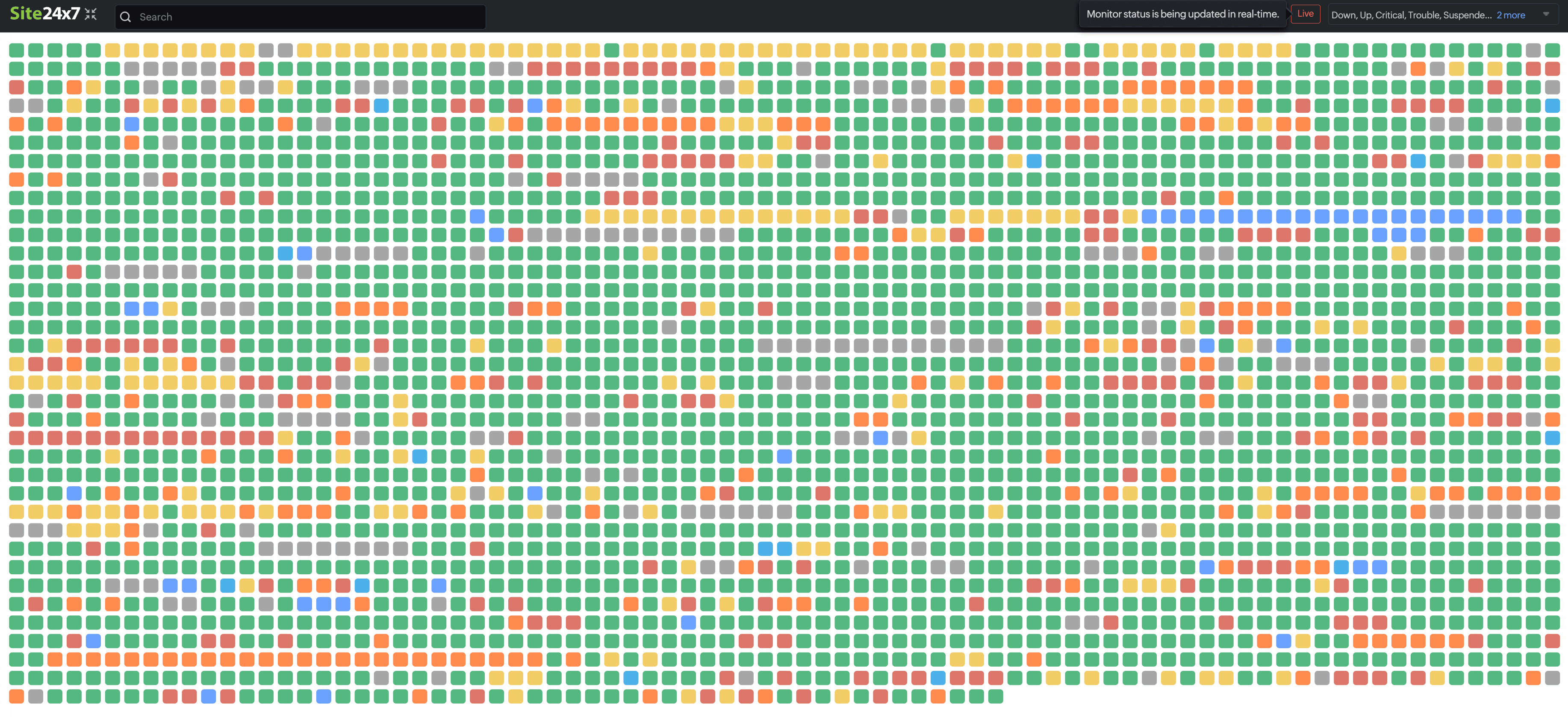

Interface NOC view

How can I configure thresholds?

You can configure thresholds for your network interfaces so that you receive alerts should any anomalies be detected. You can set thresholds for attributes like in and out traffic, Rx and Tx utilization, errors, and discards.

How do I activate or suspend interfaces in bulk?

You can activate or suspend interfaces in bulk from the Settings tab. Go to Network > Settings > Bulk Activate/Suspend Interfaces and follow the steps below:

  1. Choose the required ActionActivate or Suspend from the drop-down menu.
  2. You can set multiple conditions. Hence choose the required condition operators—AND or OR.
  3. Interfaces can be chosen in bulk based on their device, operational state, admin state, status, and type.
  4. Click Activate or Suspend.

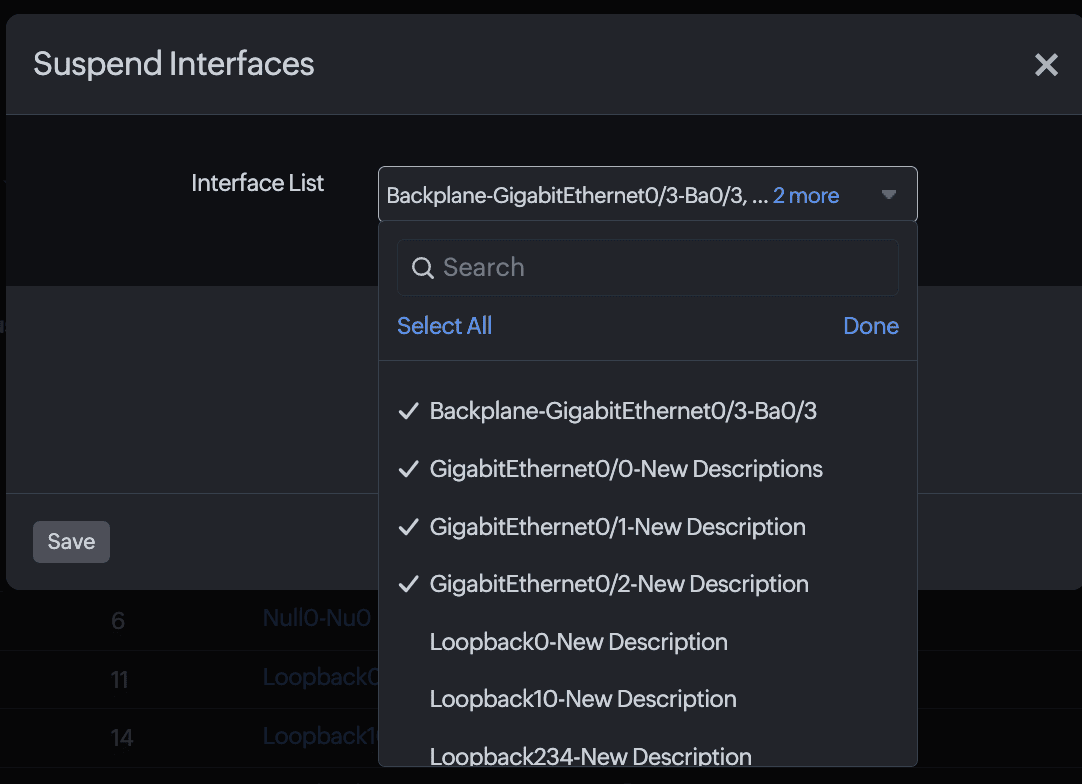

 Bulk Activate/Suspend Interfaces

How do I identify the top performing network interfaces?

Keep yourself updated about your network's health using Network Health Dashboard. This dashboard displays the top 10 network interfaces under each of the following categories: out traffic, in traffic, transmitting bandwidth utilization, receiving bandwidth utilization, out errors, in errors, out discards, and in discards.
