Network Devices

Monitor routers, switches, switch stacks, firewalls, load balancers, printers, storage devices, and other devices in your network with Site24x7's network monitoring. Obtain real-time availability stats with one-minute status polls, and stay on top of your network's performance by using our performance counters

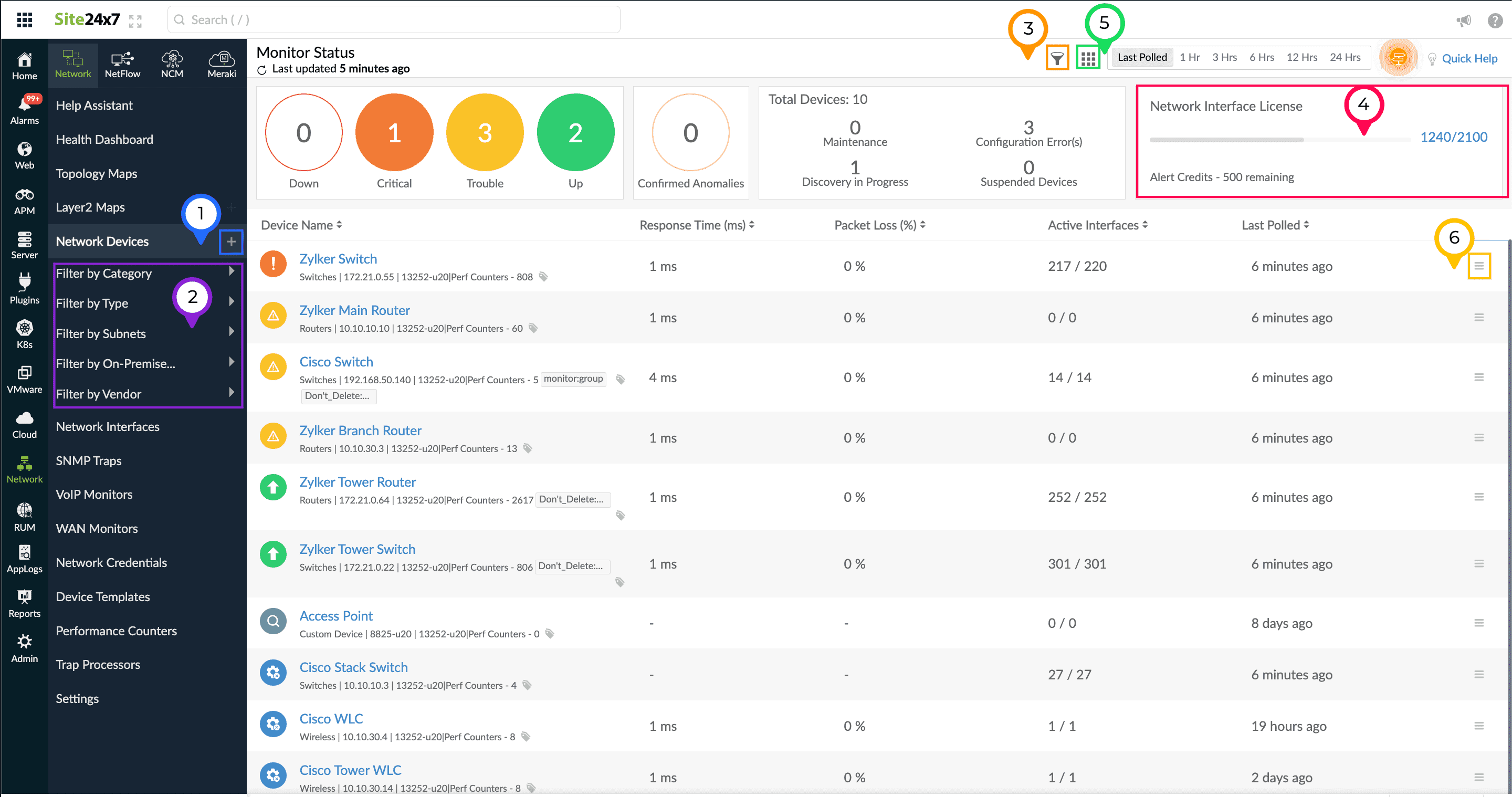

Network Devices view

After logging in to your Site24x7 account, go to Network > Network Devices. This page lists the status of devices as Down, Up, Trouble, or Maintenance based on the most recent poll. It also provides the total number of devices, devices with configuration errors, suspended devices, and any in-progress device discovery.

Devices are listed with colored icons as green for Up, red for Down, yellow for Trouble, blue for Configuration Error, dark gray for Discovery in Progress, lilac for Maintenance, and light gray for Suspended.

Network devices view

On this page, you can filter your devices based on category, type, subnet, vendor, and On-Premise Poller. You can also filter based on associated tags and monitor groups by clicking on the filter icon icon, located to the left of the Last Polled selector in the top-right corner. View the number of monitored interfaces as well as any remaining alert credits in accordance with your license. You can also pull up the NOC view from this page.

Click the hamburger icon icon next to a network device to perform the following functions:

  • Edit: Edit the device configurations.
  • Suspend: Suspend the device.
  • Poll now: Begin a poll to collect the latest values.
  • Rediscover interfaces: Rediscover the interfaces of the device.
  • Ping: Check the ping response of the device from the associated On-Premise Poller.
  • View traceroute: Obtain the traceroute to the device from the associated On-Premise Poller.
  • Resync device: Resync the device if polling has stopped.
  • Schedule maintenance: Schedule periodic maintenance for a specific period.
  • Delete: Delete the device.

Click on a device to view different tabs such as Device PerformanceInterfaces, Performance Counters, Tabular Performance Counters, Outages, Inventory, and Log Report. These tabs provide in-depth network device information.

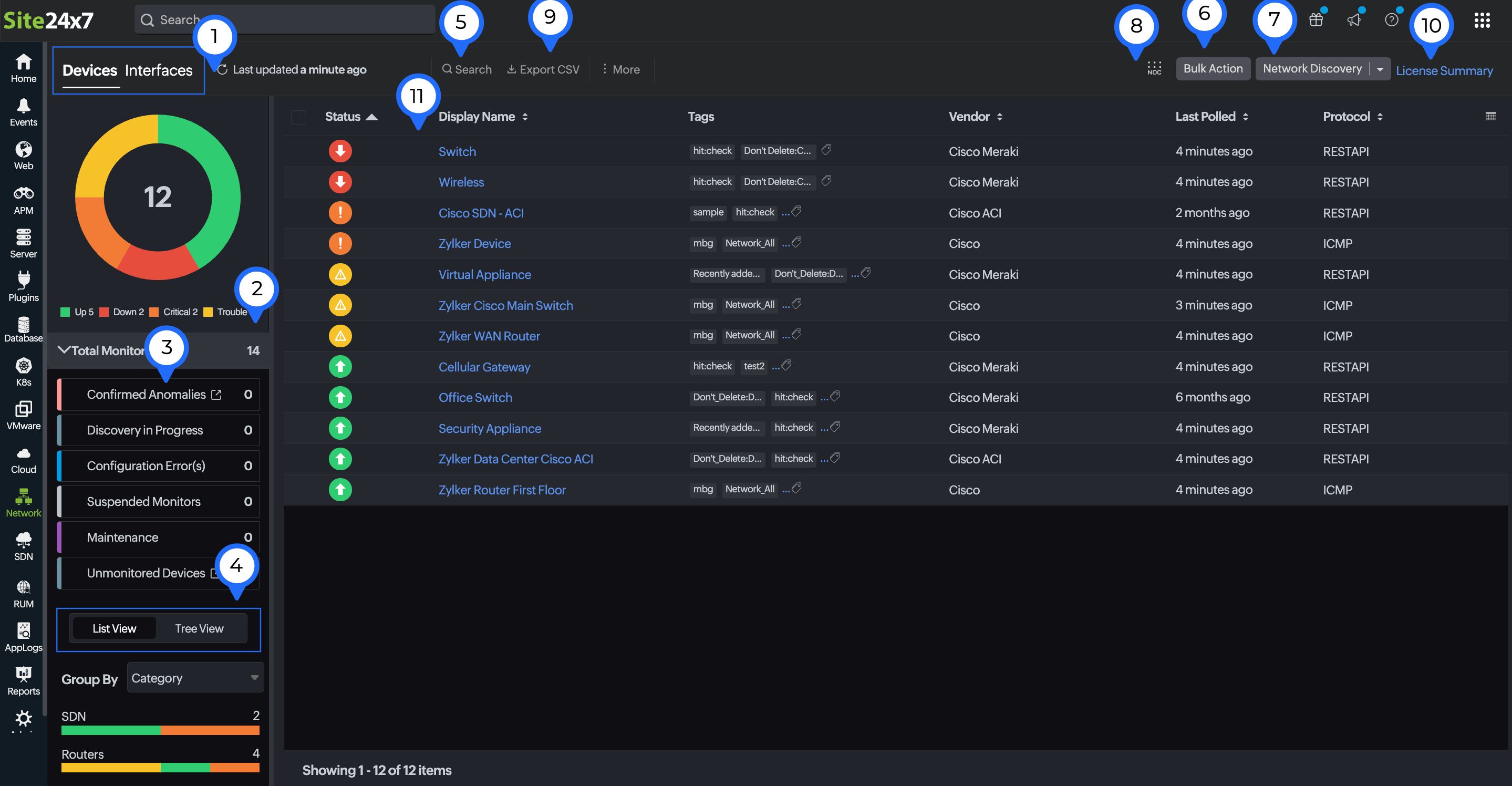

Filter devices by category, type, subnet, vendor, and On-Premise Poller

Filter devices by category, associated device template, On-Premise Poller, device vendor, and the subnet they belong to. These filtered devices can be further categorized based on their statuses.

Filter Network Devices

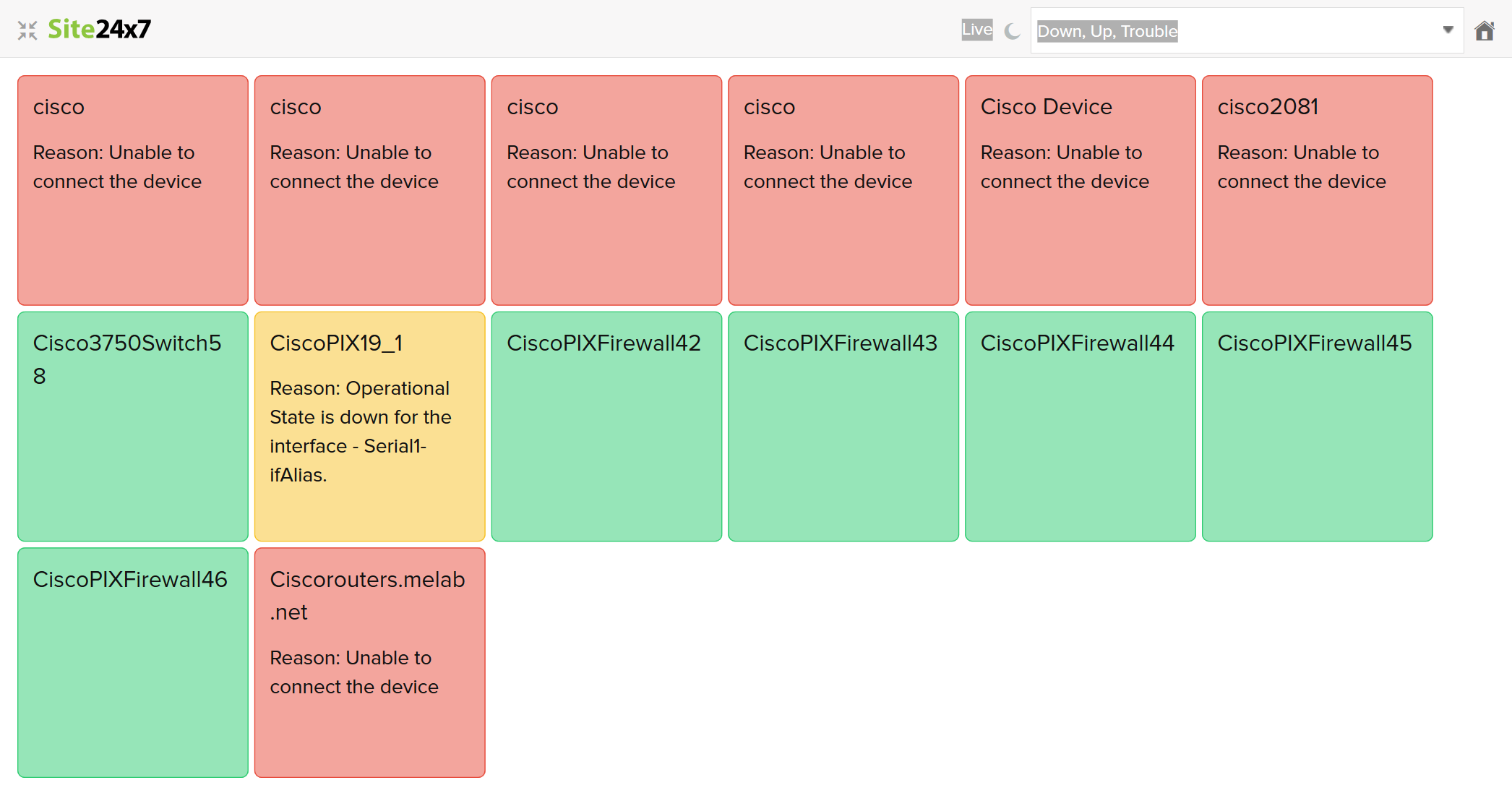

NOC view

Click the NOC view icon icon next to the Last Polled selector in the Network Devices page to open the Network Operations Center (NOC) view. This view displays each device as a color-coded tile.

Statuses are displayed as green for Up, red for Down, yellow for Trouble, blue for Configuration Error, dark gray for Discovery in Progress, lilac for Maintenance, and light gray for Suspended. You can filter the view based on these statuses. Every tile displays the device name and the reason for the current status.

Device NOC view

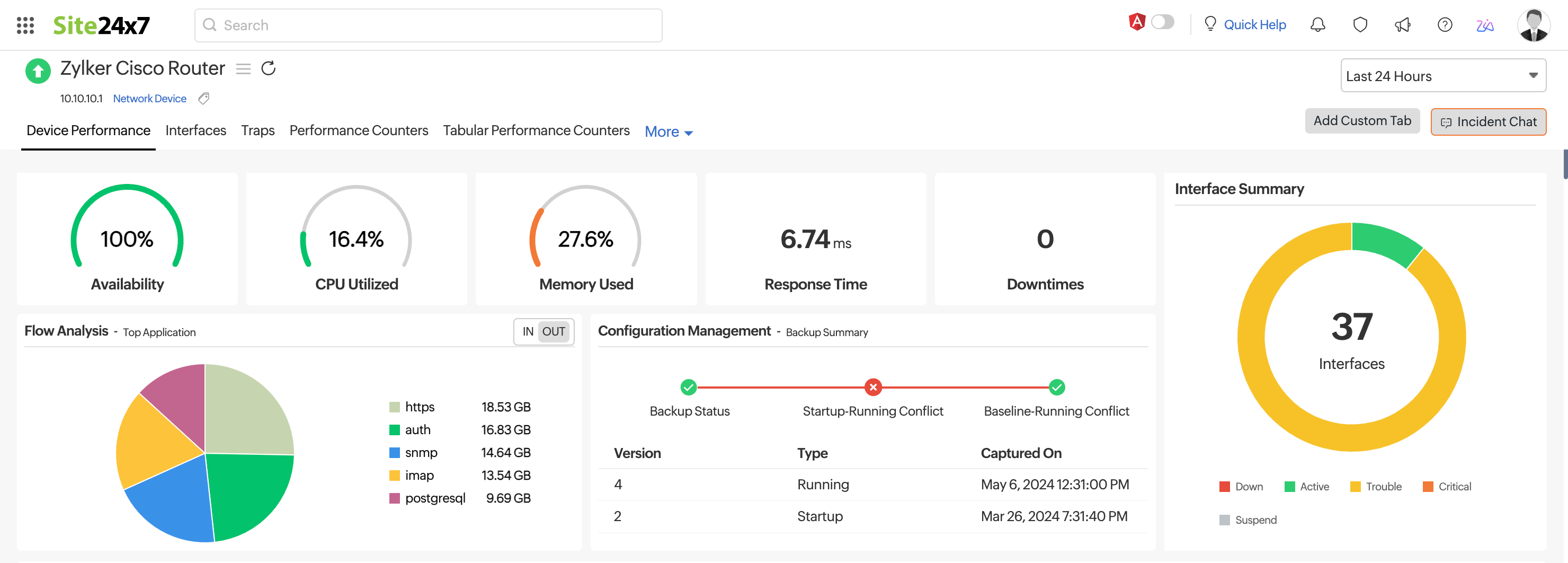

Device Performance tab

Access details on a device's availability, response time, and downtime by clicking on its name in the Network Devices page and viewing the first tab (Device Performance) that opens. Here, you can view widgets for Response Time, CPU Utilization, Memory Utilization, Device Details, Hardware Details, and the Events Timeline

If you have configured performance counters for CPU Utilization and Memory Utilization, you'll view that here. You can also configure to view Custom Monitoring Metrics for CPU Utilization, Memory Utilization, and Hardware Details by editing Device Templates.

Device performance

Device health

Get a clear picture of your network's performance, including stats on the top performing network devices, using our Network Health Dashboard

If your switch is a stack switch, you can view the individual switch and hardware details from the Stack tab.
