Help Docs

Create EBS volume snapshots

Using Site24x7's IT automation framework, you can configure an action profile to create an EBS volume snapshot. You can also configure automated tasks to trigger when there's a change in the status of the monitor or in individual attributes.

Required permissions

To perform the actions, ensure that the IAM role assumed by Site24x7 has the following partial write actions in the attached policy document:

  • "ec2:DescribeVolumes"
  • "ec2:DescribeSnapshots"

Create an automation

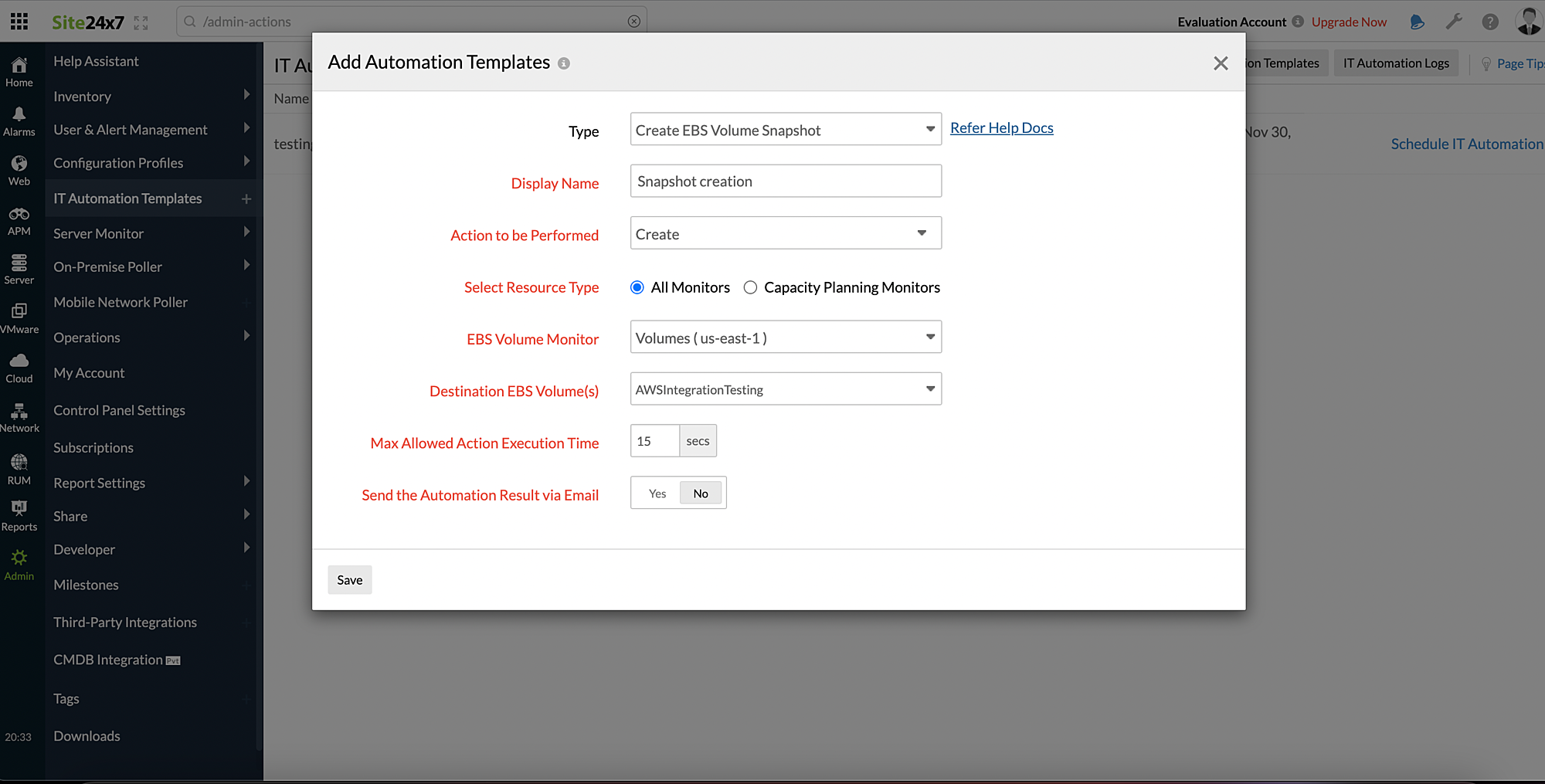

  1. Log in to the Site24x7 web console and go to Admin > IT Automation Templates > Add Automation Templates.
  2. Click the Type drop-down and select the action to be performed as Create EBS Volume Snapshot.
  3. Enter a Display Name.
  4. From the Action to be Performed drop-down menu, choose Create.
  5. Choose the resource type from the Select the Resource Type options.
  6. Select the EBS Volume Monitor.
  7. Select the Destination EBS Volume(s).
  8. Next, select the instances on which the action should be performed.
    • Max Allowed Action Execution Time: The maximum number of seconds Site24x7 should wait before the request times out. The execution time is set to 15 seconds by default. You can define an execution time between one and 90 seconds.
    • Send the Automation Result via Email: You can choose to receive an email regarding the automation result by toggling this setting to Yes. Automation results can be shared via email to your User Alert Group configured in the Notification Profile. This email will contain parameters including the automation name, type of automation, incident reason, destination hosts, and more.
  9. Click Save to save the profile.

Simulate the automation

Before mapping the action profile, you can test its functionality by invoking the operational task manually within the Site24x7 console or by using our REST APIs. This is done to check whether the appropriate write-level permissions required to execute the reboot action are in place. To test the profile, navigate back to the IT Automation summary page (Admin > IT Automation) and click the play icon next to the appropriate template to execute a dry run.

Map the action profile

To execute the automation, map the action profile to the desired alert event. You can either map the profile to a predefined monitor-level event type, or to a custom attribute-level event type.
