SOAP Web Service

The SOAP Web Service Monitor regularly checks the availability and performance of your SOAP based Web Services. It alerts you, whenever the response (XML) does not bear the specified SOAP attribute name or when the SOAP attribute value provided in response validation, does not validate against its corresponding SOAP attribute name. Now you can also monitor your dual stack infrastructure with Site24x7.

Add SOAP Web Service Monitor

  1. Login to Site24x7.
  2. Click Admin > Inventory > Monitors > Add Monitor.
  3. Select SOAP Web Service Monitor in Add Monitor page.
  4. Specify the following details to add the SOAP Web Service Monitor:

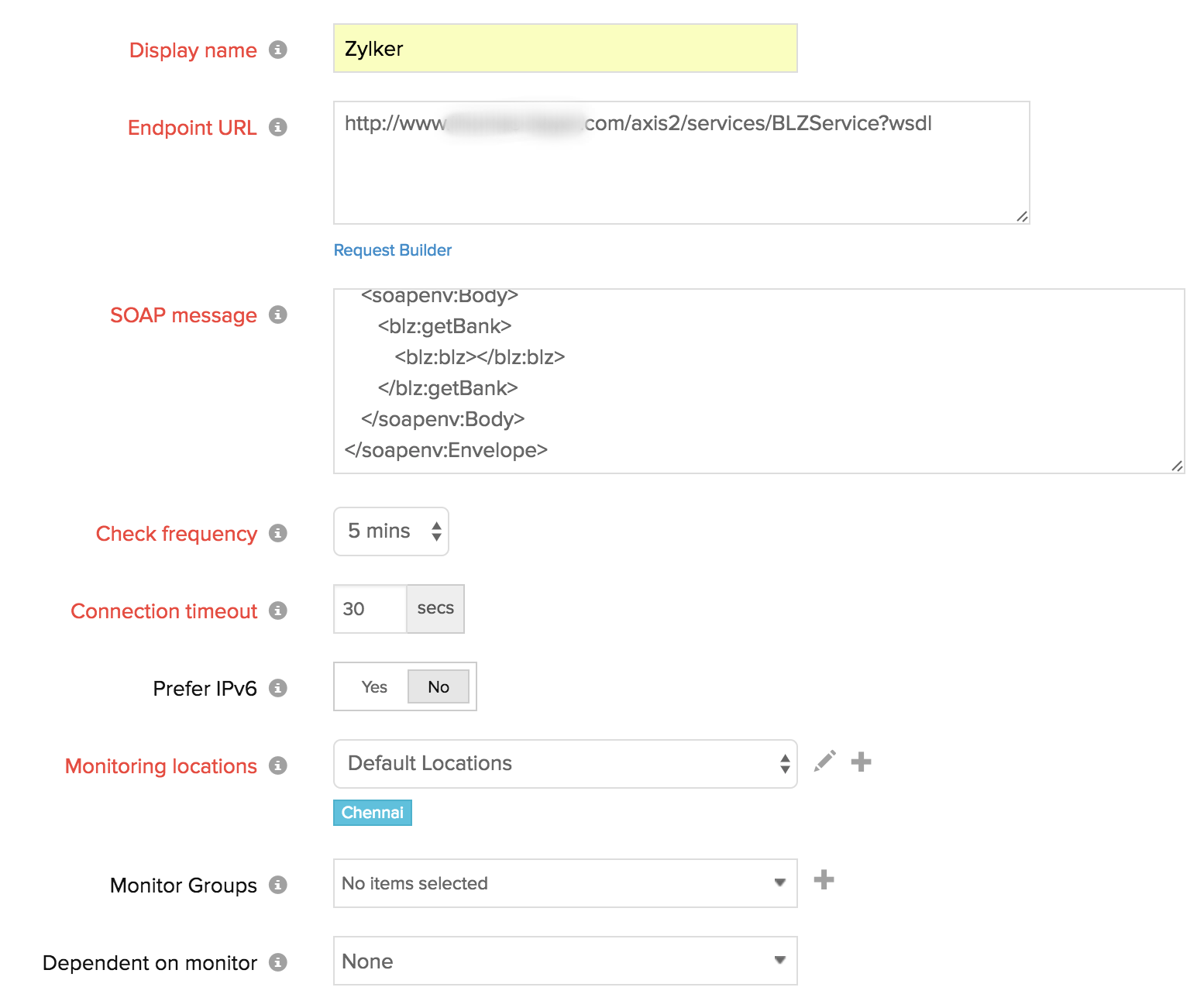

    • Display name: Provide an appropriate name for the web service which you desire to monitor.
    • Endpoint URL: Type the SOAP web service endpoint URL which needs to be monitored. Click Get Operations to set-up and initiate the SOAP Wizard.
    • SOAP message: Add the SOAP request xml data that is being used to invoke the web service. Once the SOAP XML response is successfully validated in the SOAP Wizard, click Save to Monitor to add the request XML data automatically to the Request Body.
    • Check frequency: Choose the required polling frequency. The frequency can be set from 30 seconds  to 1 day. 30 secs can be configured if you're using Enterprise, Enterprise Web, Enterprise Plus Web, Elite and Elite Web Packs. For all other users 1 minute will be the minimum supported check frequency.
      Configuring 30 seconds check frequency will be consuming the license of two basic monitors.
    • Connection timeout: Specify the time in seconds needed to establish a connection with the target server. If the connection is not established within the specified time, the website will be reported as down with "Could not establish connection" as the reason.
    • Prefer IPv6: If you want to monitor your SOAP Web Service over IPv6 enabled locations, simply move the rocker button to "YES" when creating or editing a monitor form.
      • Site24x7 lets you monitor your dual-stacked IPv4/IPv6 based infrastructure as per you need. IPv4 will be enabled as the default protocol. You'll be able to monitor your IPv6 infrastructure, once you enable the rocker button to IPv6. If the connectivity over IPv6 fails, it will not fall back to IPv4 automatically. Read more.
      • Enabling IPv6 in the monitoring form doesn't make it compatible to monitor IPv4, by default. If you want to monitor a resource, which is compatible with both IPv4 and IPv6–you'll have to set up two separate monitor checks for this.
    • Monitoring locations: Select a location profile from the dropdown list from where the webservice will be monitored. To know more, refer Location Profile.
    • Monitor Groups: You can associate your monitor with multiple monitor groups by selecting the relevant monitor groups from the drop down list. This allows in logical grouping of your monitors.
      To learn how to create a monitor group for your monitors, refer Monitor Groups.
    • Dependent on monitor: Select a monitor from the drop-down list to choose it as your dependent resource. You can add up to 5 monitors as dependent resources. Alerts to your monitor will be suppressed based on the DOWN status of your dependent resource.
      Configuring a dependent resource and suppressing alerts based on the dependent resource's status is part of providing you with better false alerts protection. Learn more about alert suppression at monitor level.

      If you select "None" in the dependent resource field, alerting will progress as per your normal configuration settings. No alerts will be suppressed in this case as the monitor doesn't have any dependent resource.

      Multiple monitor group support for monitors allow a monitor to be associated with multiple dependent resources in different monitor groups. If during a normal monitor status check, any one of these dependent resources' status is identified as DOWN, the alert for the monitor will be automatically suppressed. However, the dependency configuration at monitor level is always given the higher priority over any other monitor group level dependency configuration for suppressing alerts.
    • SOAP Wizard: SOAP wizard takes a WSDL URL as an input and makes all operations supported in the web service. It generates a SOAP request XML, Endpoint URL and required request headers for a selected operation and also permits you to test its response. Define the following details to successfully undertake the test operation:

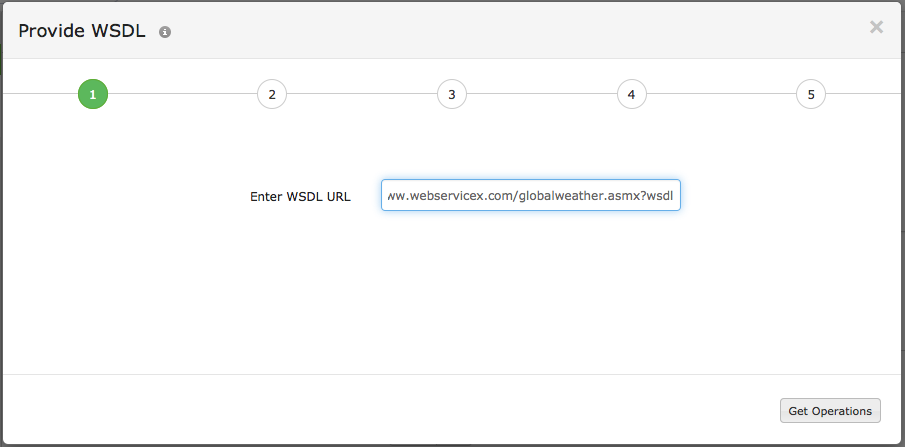

      • Enter WSDL URL: Type the WSDL URL which requires to be monitored. Click Get Operations.

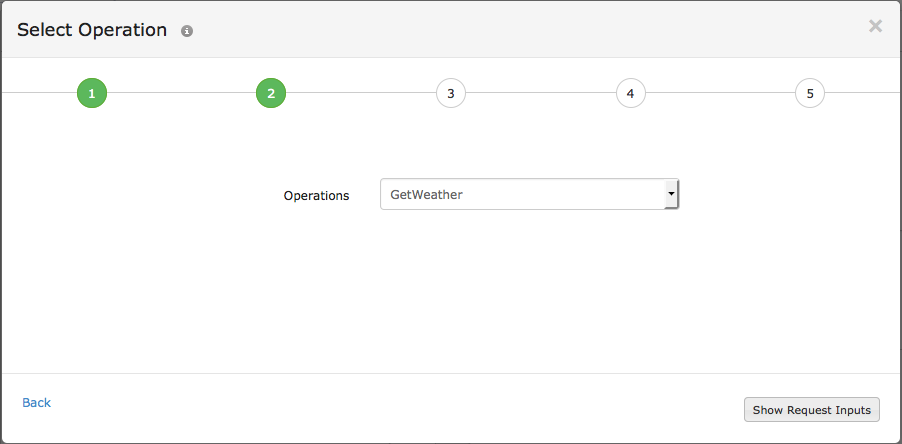

      • Operations: Choose the required Operation from the drop down and click Show Request Inputs.

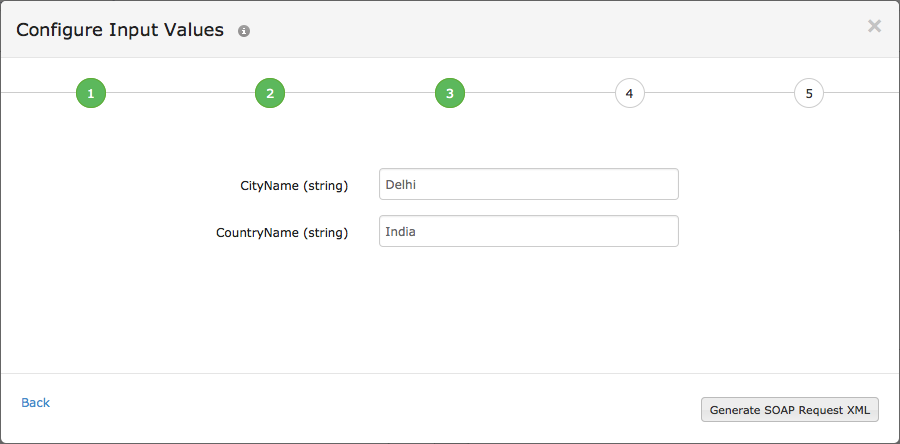

      • Configure Input Values: Add requisite value against its corresponding parameter and click Generate SOAP Request XML.

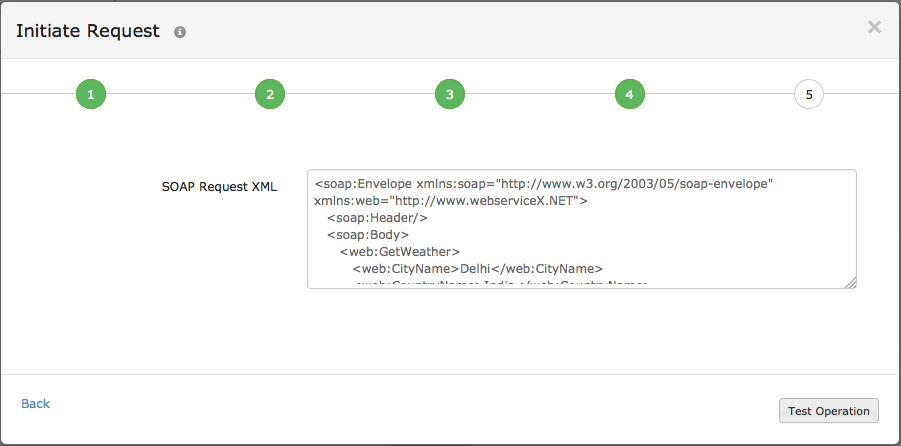

      • Initiate Request: Click Test Operation to validate the SOAP Request XML.

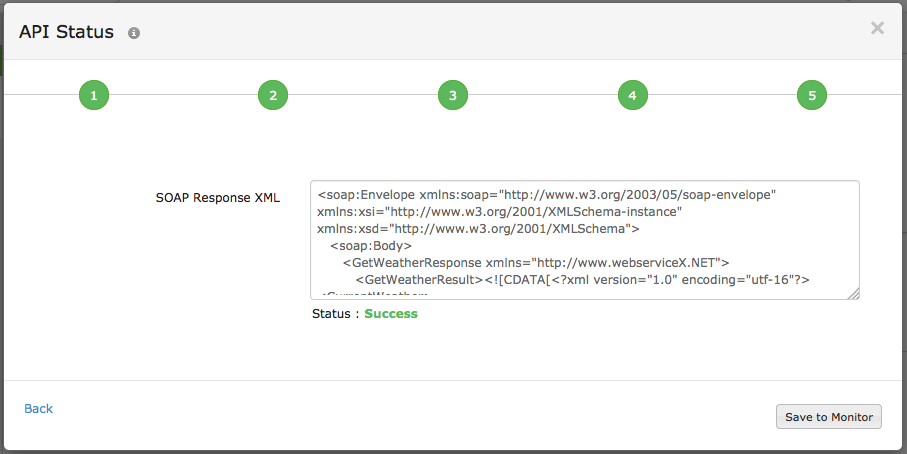

      • API Status: At one time the SOAP Response XML is successfully validated, click Save to Monitor to add the request XML data to the Request Body.




  5. Specify the following details for HTTP Configuration:

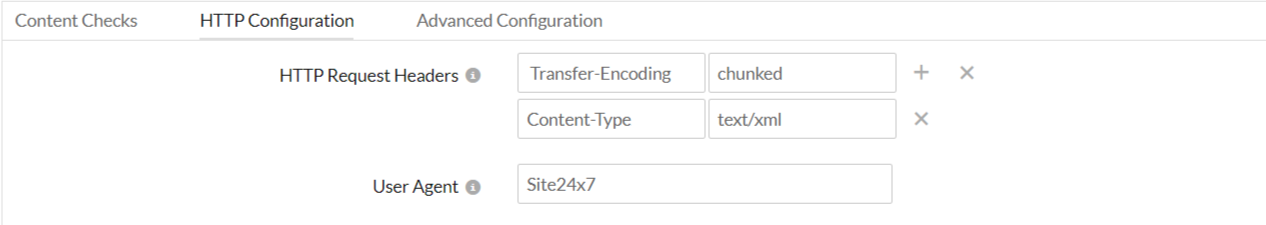

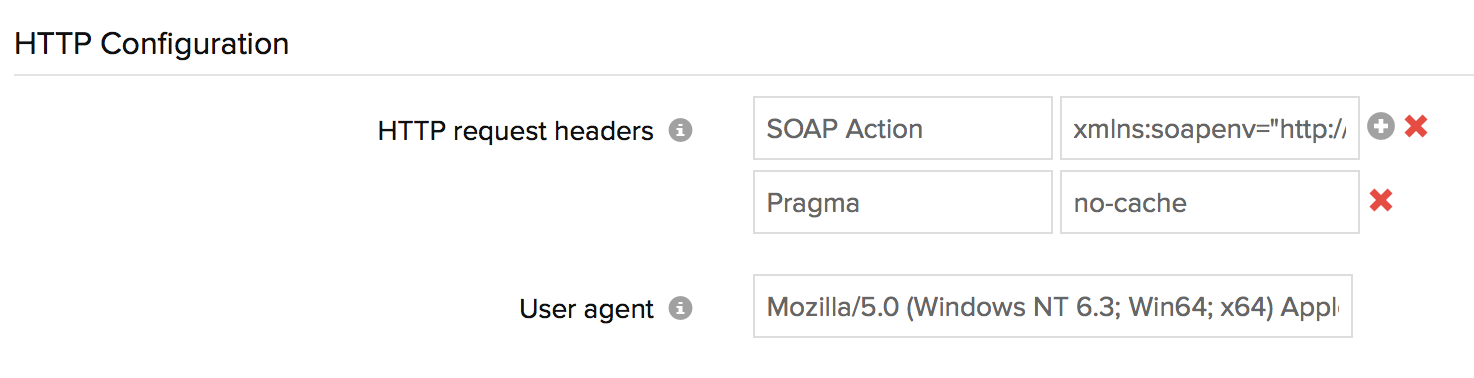

    • HTTP request headers: Sometimes you might want to customize the default HTTP request header information. In such cases, the additional header name and header value can be added here.
    • User agent: Set customized user agent (web browser) for sending your request and the HTTP headers. You can choose from the available user agents.

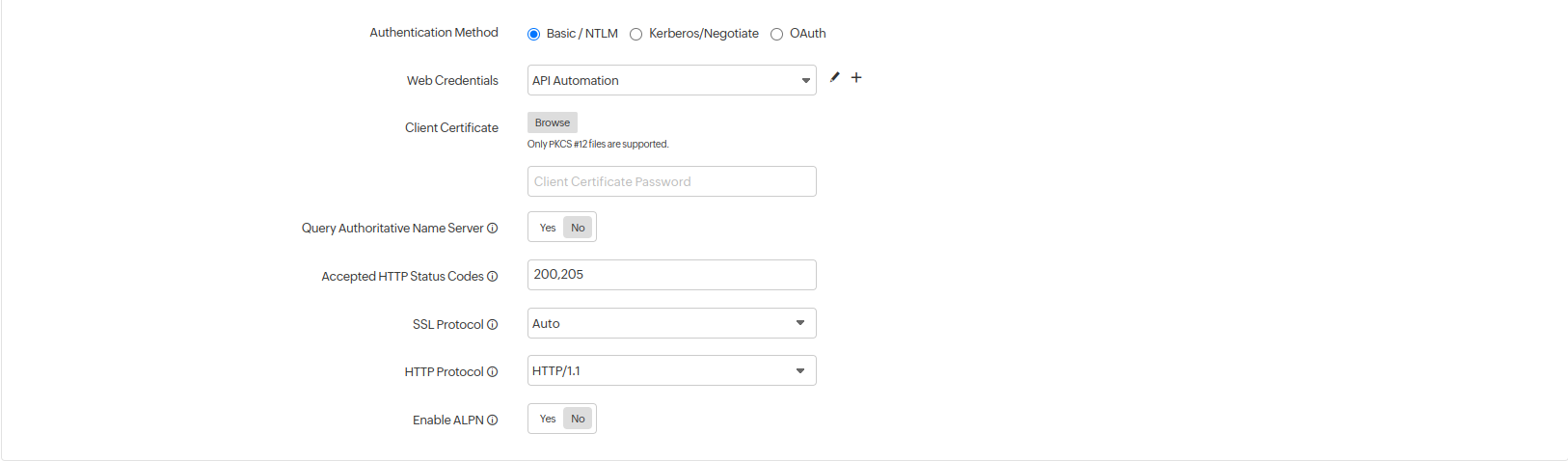

    • Authentication Method: Manage multiple authorization methods for your monitors.

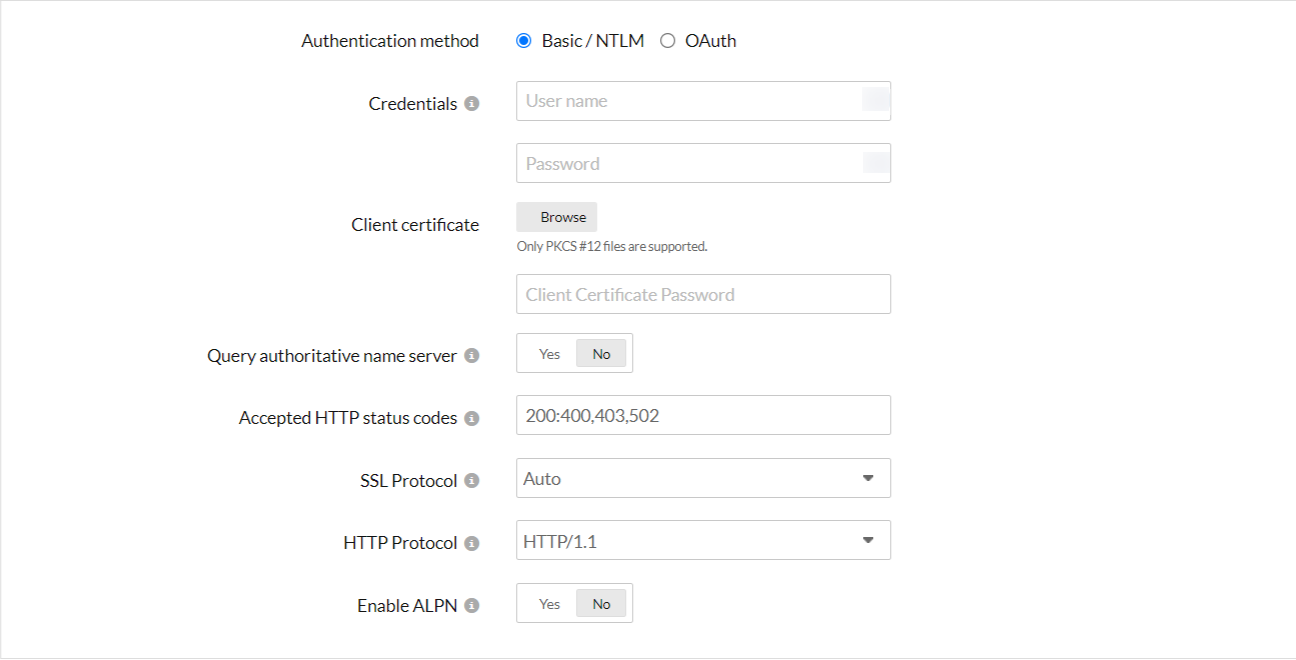

      • Basic/NTLM: Configure your Basic/NTLM based authorization. Windows NTLM is the authentication protocol used on systems running on Windows OS.
        Credentials
        Specify your Username and Password for URLs requiring Basic/NTLM based authentication.

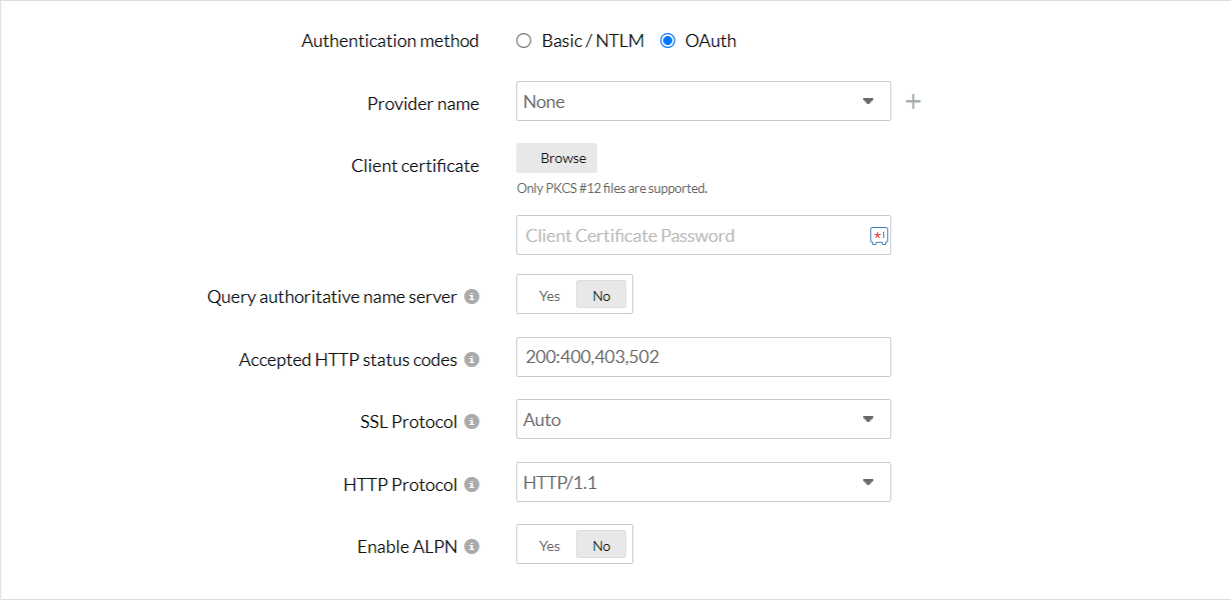

      • OAuth: Pick the OAuth radio button, if you're monitoring a resource that is secured by OAuth framework.
        OAuth Provider Name: Select the OAuth Provider Name from your preconfigured list or create a new OAuth profile by clicking the + button.
      • Client Certificate: For websites that require client certificate authentication, upload the client certificate (has to be a PKCS#12 file.)
    • Query authoritative name server: Use the toggle button to decide if you want to resolve your domain name by an authoritative name server.
    • Accepted HTTP status codes: Provide a comma-separated list of HTTP status codes that indicate a successful response. You can specify individual status codes, as well as ranges separated with a colon. Learn more about Accepted HTTP Status Codes.
  6. Specify the following details for Content Checks:

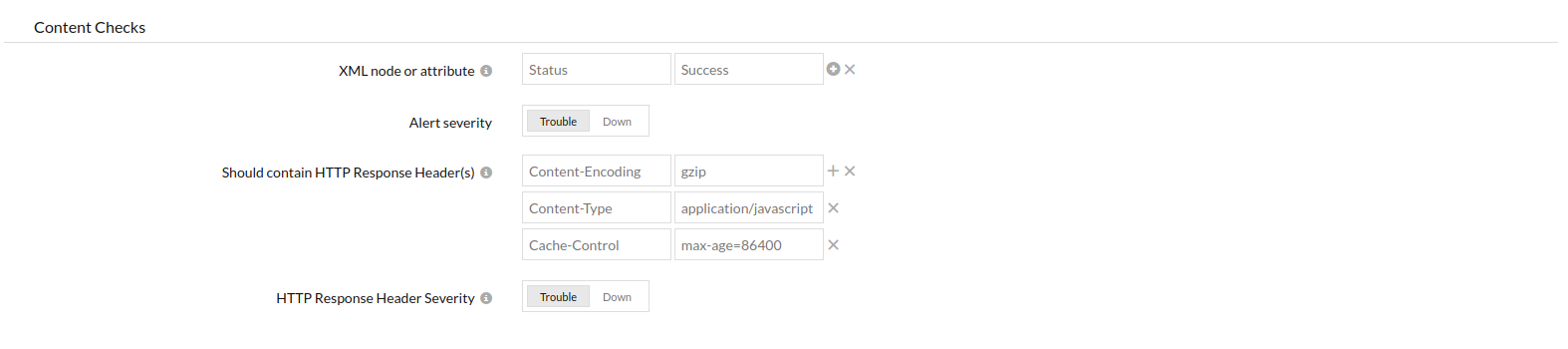

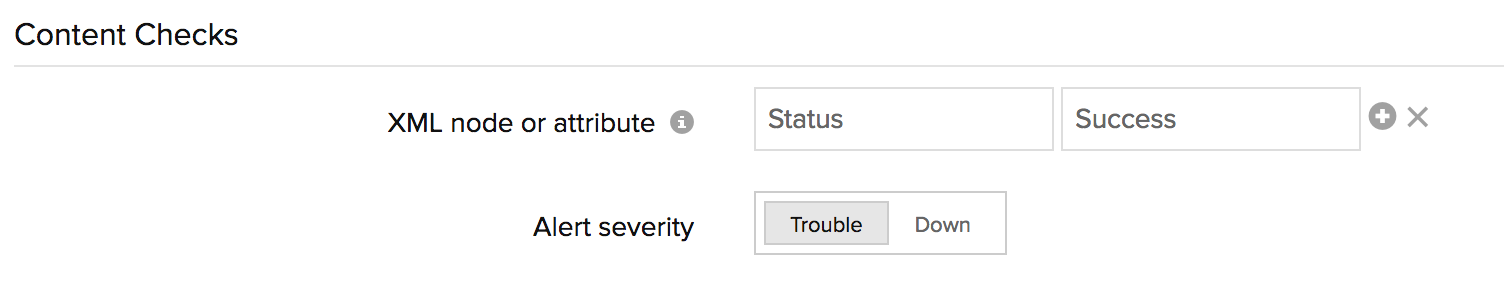

    • XML node or attribute: Configure the expected SOAP Attribute Name and SOAP Attribute Value to validate the expected XML response.
    • Alert severity: Use the toggle button to trigger a trouble or down alert.

    • Should contain HTTP Response Headers: Enter the desired response header and values for your HTTP request and verify whether the HTTP headers are present or the values match with the desired response. Trigger a trouble or down alert during a check failure.
      While configuring the response header check, you must add values based on the following conditions:
      • You can add multiple headers and each header can accept multiple values.
      • A single value can be configured with/without any double quotes (eg.: keep-alive or "keep-alive").
      • In case you have multiple header values configured, you will have to separate them with a space and also use double quotes for each of them. (eg., "gzip" "br").
      • Header value can also support regex validation. The regex pattern should be "${<regex>}". For example : ${\d{4}} can be used to search for four continuous digit numerical value in the value of the header configured in the header name.
    • HTTP Response Header Severity : Use the toggle button to specify the Alert Severity as DOWN or TROUBLE. When the test fails an alert will be automatically triggered.

  7. Specify the following details for Configuration Profiles:

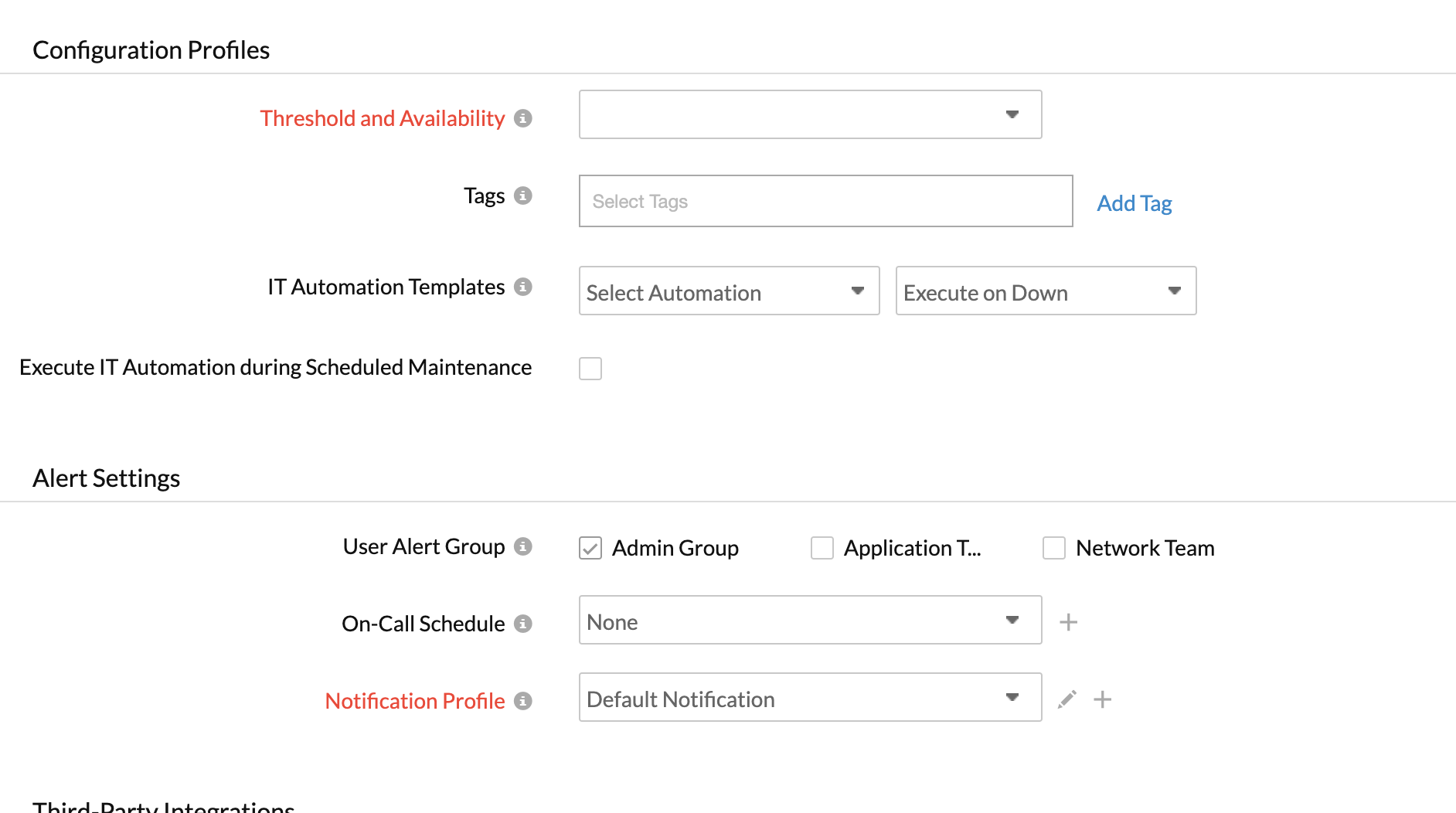

    • Threshold and Availability: Select a threshold profile from the drop down list or choose the default threshold set available and get notified when the resources cross the configured threshold and availability.
      To create a customized threshold and availability profile, refer Threshold and Availability.
    • Notification profile: Choose a notification profile from the drop down or select the default profile available. Notification profile helps to configure when and who needs to be notifed in case of downtime.
      Refer Notification Profile to create a customized notification profile.
    • User Alert Group: Select the user group that need to be alerted during an outage.
      To add multiple users in a group, see User Groups.
    • Tags: Associate your monitor with predefined Tag(s) to help organize and manage your monitors creatively. Learn how to add Tags.
    • IT Automation: Select an automation to be executed when the website is down/trouble/up/any status change/any attribute change. The defined action gets executed when there is a state change and selected user groups are alerted.
      To automate corrective actions on failure, refer IT Automation.
  8. Third Party Integrations: Associate your monitor with a pre-configured third-party service. It lets you push your monitor alarms to selected services and facilitate improved incident management.
    If you haven't setup any integrations yet, navigate across to ”Admin > Third Party Integration” to create one. Tell me more.
  9. Click Save.
    Once the monitor setup is completed, Site24x7 deep discovery wizard scans your domain and auto detects all related internet resources for your domain that can be added to your account for a comprehensive internet services monitoring. Explore more about internet services deep discovery.

Learn more about the various performance metrics of a SOAP Web Service Monitor.
