Route 53 Hosted Zone Record Set Check

Record sets are created in a Hosted Zone to define how traffic is routed to your domain. Considering that a single Hosted Zone may contain multiple record sets, managing them could become tedious. Site24x7 gives you a simple way to keep an eye on your routing policy with the Route 53 Hosted Zone Record Set monitor.

Note: One basic monitor will allow you to monitor a total of 10 record sets Note: A monitor for record sets will be added only if 'Query Logging' is enabled from the AWS console. Learn more.

Setup and configuration

  • If you haven't done it already, enable access to your AWS resource by creating Site24x7 as an IAM user or by creating a cross-account IAM role between your account and Site24x7's AWS account. Learn more.
  • Next, In the Integrate AWS Account page, please make sure the Route 53 Hosted Zone checkbox is selected in the Services to be discovered field.  Learn more.

Policies and permissions

Please make sure the following read level actions are present in the IAM policy assigned to Site24x7 entity. Learn more.

  • "route53:ListTagsForResources",
  • "route53:GetHealthCheckLastFailureReason",
  • "route53:GetHealthCheckStatus",
  • "route53:GetHostedZone",
  • "route53:ListHostedZones",
  • "route53:ListResourceRecordSets",
  • "route53:ListGeoLocations",
  • "route53:GetTrafficPolicyInstance",
  • "route53:GetTrafficPolicy",
  • "route53:ListTagsForResource",
  • "route53:ListQueryLoggingConfigs",
  • "route53domains:ListDomains",
  • "route53domains:GetDomainDetail",
  • "logs:DescribeLogStreams",
  • "logs:GetLogEvents"

Polling frequency

Site24x7 queries the AWS service level APIs and CloudWatch APIs as per the poll frequency set (1 minute to a day), to collect performance metrics. Learn more.

Supported Metrics

Attribute Description Data type Statistic
Total Request Count The total number of requests received by your domain. Request Sum



Attribute Description Data type Statistic
No.of NOERROR DNS Response The number of DNS queries completed successfully. Query Sum
No.of FORMERR DNS Response Number of DNS Query Format Error Query Sum
No.of SERVFAIL DNS Response The number of times the server failed to complete the DNS request Query Sum
No.of NXDOMAIN DNS Response The number of responses that return Domain name does not exist. Query Sum
No.of NOTIMP DNS Response Count of the number of times DNS failed because the function was not implemented. Query Sum
No.of REFUSED DNS Response Number of times the server refused to answer for the query. Query Sum
No.of YXDOMAIN DNS Response The count of the number of times the response returned invalid domain Query Sum
No.of XRRSET DNS Response Count of the number of times the response returned invalid RRset Query Sum
No.of NOTAUTH DNS Response Number of times the Server was not authoritative for the zone. Query Sum
No.of NOTZONE DNS Response Number of times the response returned Name not in zone. Query Sum

Route 53 Hosted Zone Record Set monitoring UI pages

Summary

An overview of the DNS queries and their response codes displayed as time series charts.

Configuration

Configuration details of the Public Hosted Zone including Zone ID, Record set and its type, Domain name, Query logging status and the traffic policy associated with the record set.

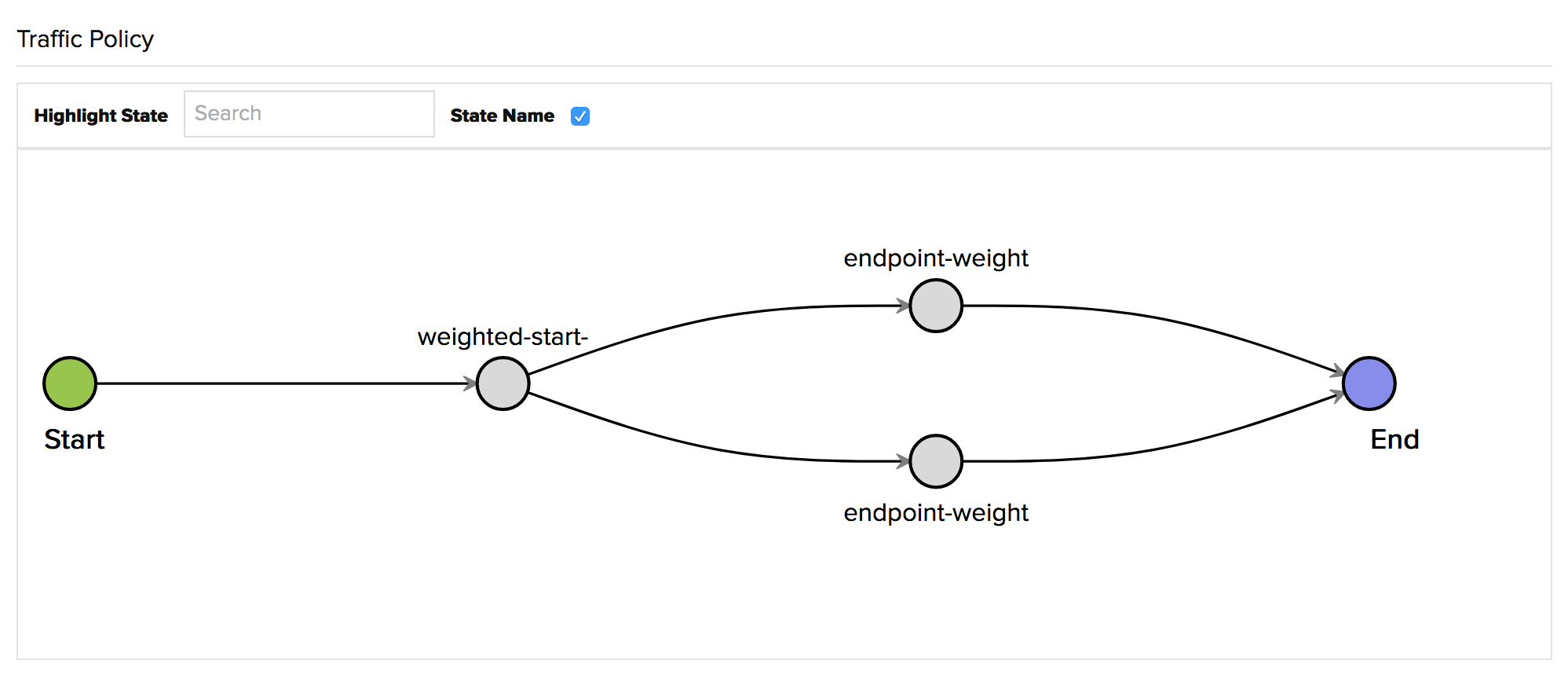

Traffic policy

A visual representation of the traffic policy configuration.

View the traffic policy of Route53

Add a threshold profile for your Route 53 Hosted Zone Record Set monitor. Learn more.
