NCM Configuration Summary

You can perform operations on the devices being monitored by Network Configuration Manager (NCM) from the Configuration Summary page.

Configuration Summary page

The Config Summary page contains Configuration Details and Configuration Changes. The Configuration Details section contains details about the current configuration version that is in use and the baseline version details. You can view the configuration details by clicking on the configuration version number or perform actions by clicking on the hamburger icon in the Action column.

Note

The Change By information is automatically captured for Cisco devices and may not be updated for devices from other vendors.

Figure 1. Config Summary page.

Viewing configuration details

To view the details of a configuration:

Log in to your Site24x7 account.
Navigate to Network > NCM > NCM Devices.
Select the device for which you wish to view the configuration details, then click the Config Summary tab.
Click the version number of the required configuration to view the Configuration Details tab.

Figure 2. Configuration Details tab.

Set configuration version as Baseline

The Baseline configuration version is used as the reference for comparison. You can compare the current version of the Start up and Running configuration with the Baseline version to view the differences. Furthermore, you can set any configuration version as the Baseline based on your needs.

To set a configuration version as the Baseline:

Log in to your Site24x7 account.
Navigate to Network > NCM > NCM Devices.
Select the device for which you wish to view the configuration details, then click the Config Summary tab.
Click the hamburger icon in the Action column to choose the version as the Baseline.
Select Set as Baseline. For example, if you set the Startup configuration version 11 as the baseline, then it will be set as the Startup-Baseline version.

Comparing configurations

To compare any two configuration versions to view the differences:

Log in to your Site24x7 account.
Navigate to Network > NCM > NCM Devices.
Select the device for which you wish to view the configuration details, then click the Config Summary tab.
Click the hamburger icon in the Action column.
Select from any of the compare options in the drop-down menu: Compare with Startup, Compare with Running, Compare with Previous, or Compare with Any.

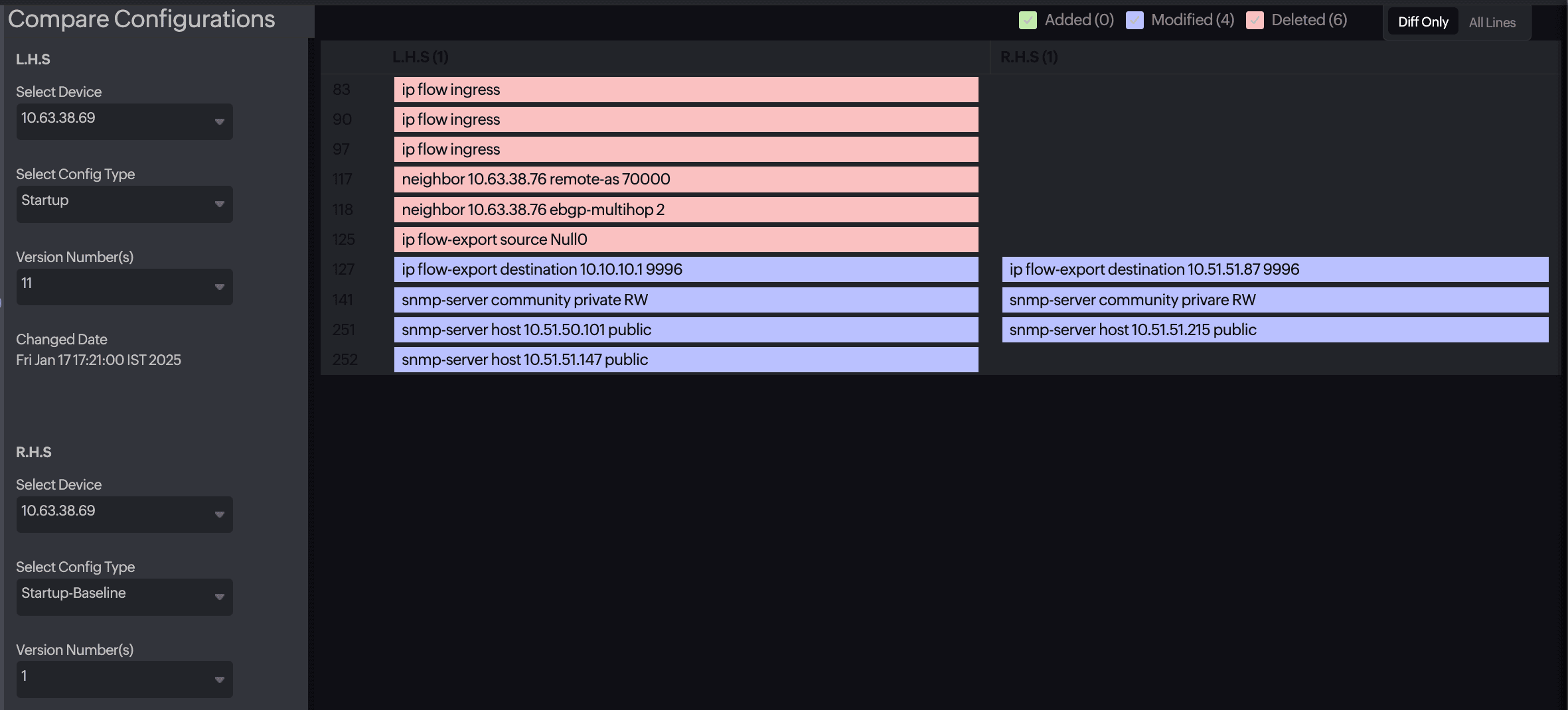

Figure 3. Comparing configurations.

Uploading configurations

Log in to your Site24x7 account.
Navigate to Network > NCM > NCM Devices.
Click the device for which you wish to upload a previous configuration version.
Navigate to the Config Summary tab and select the Version you wish to upload. The Configuration Details tab opens.
Click the hamburger icon and select Upload Configuration. You can use this option to roll back to the Startup-Baseline, Running-Baseline, or a previous configuration version.

Figure 4. Upload configuration.

Note

The Upload Configuration option will be available only if supported by the selected protocol and the monitor's device template.

Downloading configurations

Log in to your Site24x7 account.
Navigate to Network > NCM > NCM Devices.
Click the device for which you wish to upload a previous configuration version.
Navigate to the Config Summary tab.
Click the configuration version that you wish to download. This will take you to the Configuration Details tab.
Click the hamburger icon on the top-right side of the page and select Download Configuration. The configuration details will be downloaded as a text file on your device.
