Kubernetes Monitoring

Monitor the different components of your container infrastructure and get a complete picture of the health and performance of your Kubernetes clusters.

Add a Monitor

Site24x7 supports Kubernetes monitoring in the following cloud platforms: On premise, Azure (Azure Kubernetes Engine), AWS (Elastic Kubernetes Service), and GCP (Google Kubernetes Engine).

  1. Log in to your Site24x7 account and go to Server > Kubernetes > Clusters (+) > Add Kubernetes Monitor.
  2. Select the platform where your Kubernetes clusters are running - On premiseAzure (AKS), Google Cloud Platform (GKE), or Amazon Web Services (EKS).
  3. Configure Role-based Access Control (RBAC) permissions and install the Site24x7 agent as DaemonSet:
    1. Download the site24x7-agent.yaml file from the Add Kubernetes Monitor page in the Site24x7 web client.
    2. Copy the downloaded file and save it in your Azure CLI/GCP Cloud Shell/AWS control plane/on premise master node terminal.
    3. Replace the device key that is given in the Site24x7 web client.
    4. If you have proxy, refer the below section to configure it
    5. Then, execute the following command:
      kubectl apply -f site24x7-agent.yaml
  4. Configure kube-state-metricsDownload the site24x7-kube-state-metrics.yamlfile and save it in your Azure CLI/GCP Cloud shell/AWS control plane/on premise master node terminal. Execute the following command to apply the YAML.
    kubectl apply -f site24x7-kube-state-metrics.yaml
    Alternatively, you can execute the following command to download and configure the kube-state-metrics:
    curl -L -o kube-state-metrics-1.9.7.zip https://github.com/kubernetes/kube-state-metrics/archive/v1.9.7.zip && unzip kube-state-metrics-1.9.7.zip && kubectl apply -f kube-state-metrics-1.9.7/examples/standard
    This is an optional step. But, this file is essential to view the complete set of performance metrics for nodes, pods, containers, deployments and other features like the Health dashboard.

Ensure the site24x7-agent pods are created and in running state. Please wait a few minutes for all of your nodes, containers, pods, deployments, HPA, and ReplicaSets to be added in Site24x7's web client. Once discovery is complete, you'll be directed to the Health dashboard.

Proxy Setting:

If the set up has proxy, uncomment the following lines under env in the site24x7-agent.yaml file and update the proxy value:

- name: http_proxy
  value: http://192.108.100.100:1118
- name: https_proxy
  value: https://192.108.100.100:1118

Dashboards

There are two exclusive dashboards for Kubernetes in Site24x7. You can also create custom dashboards.

Health Dashboard

Once you've successfully added a Kubernetes monitor, you'll be directed to the Health dashboard. This represents a single view of all critical components of your Kubernetes infrastructure.

Highlights:

  • See the total number of all the nodes, pods, services, DaemonSets, deployments, ReplicaSets, and jobs in one view.
  • View the current status of all the nodes, pods, and services as separate NOC dashboards. Click on a NOC box to go to that particular resource's Summary page.
  • Identify issues faster by seeing the number of problematic nodes and pods according to their status: DOWN, CRITICAL, TROUBLE, MAINTENANCE.
  • Analyze the top CPU and memory intensive nodes and pods to instantly troubleshoot performance issues and avoid future performance degradation.
Kubernetes Health Dashboard

Inventory Dashboard

Go to Server > Kubernetes > click on the cluster > Inventory Dashboard. The Inventory dashboard gives you a list view of the various resources in your Kubernetes infrastructure including the count of the nodes, pods, DaemonSets, deployments, endpoints, ReplicaSets, and services. Click on a resource type to view a detailed inventory report including their respective labels, annotations, OS type, and more.

Kubernetes Inventory Dashboard

Business View

Once a Kubernetes monitor is added, a business view is created for your entire cluster. Toggle between Infrastructure View and Service View to spot outliers and detect unusual monitoring patterns in Kubernetes cluster. Learn more.

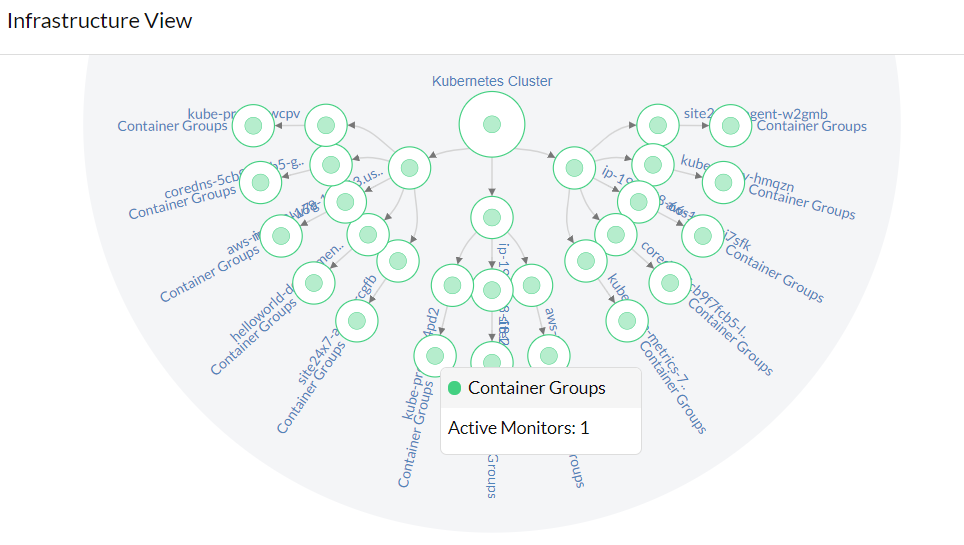

Infrastructure View:

This view shows your entire Kubernetes cluster from a node point of view - from the Kubernetes cluster, nodes, pods, and containers.

Kubernetes Business View

Service View:

This view shows your entire Kubernetes cluster from a service point of view - from the Kubernetes cluster, service, pods, and containers.

Performance Metrics

For every component discovered and monitored in Site24x7, find below the various performance metrics we provide to ensure continued functioning of the Kubernetes cluster.

Performance Metrics for Services

Go to Server > Kubernetes > click on the cluster > Services > click on the monitor to view performance metrics.

Metric Name Description
Summary
Configuration Details Gives the name, type, annotations, IDs, labels, and IP addresses of the load balancer and cluster.
Inventory Details
Associated Components Lists the other components associated with this service like deployments, nodes, and pods. Click on a resource type to view a detailed inventory report.

Performance Metrics for Nodes

Go to Server > Kubernetes > click on the cluster > Nodes > click on the monitor to view performance metrics.

Metric Name Description
Summary
Configuration Details Gives the name, created time, unique ID, labels, annotations, and more
Identifiers Lists labels and annotations associated with the node
Conditions Lists the various conditions for nodes functioning. Thresholds can be set for each of these conditions
Resources Gives the capacity and usage of resources of this node
Dependencies Lists the details of the pods in this particular node
Performance
Resource Utilization on CPU Cores The total CPU resources of the node
Resource Utilization on Memory Bytes The total memory resources of the node
Unscheduled Nodes  Whether a node can schedule new pods

Performance Metrics for Pods

Go to Server > Kubernetes > click on the cluster > Pods > click on the monitor to view performance metrics.

Metric Name Description
Summary
Configuration Details Gives the name, host IP, DNS policy, labels, and more.
Conditions Lists the various conditions for pods functioning. Thresholds can be set for each of these conditions.
Performance
Pod Status  Status of pods in a given phase
Pod Status Ready  Tells whether the pod is ready to serve requests
Pod Status Scheduled  Status of the scheduling process for the pod

Performance Metrics for Containers

Go to Server > Kubernetes > click on the cluster > Containers > click on the monitor to view performance metrics.

Metric Name Description
Port Bindings Details of all the ports exposed by the container and their mappings with the host
Volume Bindings Details of all the volumes attached to the container
CPU Utilization CPU utilization for that container in the pod specification
Network Stats Total number of bytes received and transmitted by the container interfaces
I/O Utilization Number of I/Os read, written, completed to/from the disk by the container
Anonymous Memory Statistics The amount of anonymous memory that has been identified as active and inactive by the kernel respectively
File Statistics Cache memory that has been identified as active and inactive by the kernel respectively
Cache Size The amount of memory used by the processes of this control group.
Page Statistics Each time a page is "charged" (added to the accounting) to a Cgroup, PgPin increases. When a page is “uncharged” (no longer “billed” to a Cgroup), PgOut increases
Resident Set Size Non-cache memory for a process
Total Memory The amount of container memory that doesn't correspond to anything on disk: stacks, heaps and anonymous memory maps.
Swap Memory The excess memory requirements to disk when the container has exhausted all the RAM that is available to it.
Unevictable Memory  The amount of memory that cannot be reclaimed. Generally, this accounts for the memory that has been locked with mlock. It is often used by crypto frameworks to make sure that secret keys and other sensitive material never gets swapped out to disk.

Performance Metrics for Deployments

Go to Server > Kubernetes > click on the cluster > Deployments > click on the monitor to view performance metrics.

Metric Name Description
Configuration Details Gives the name, created time, unique ID, labels, annotations, and more.
Status of ReplicaSets  The status of replicas per ReplicaSet
Current Number of Pods  The current number of pod resources in the node
Status of Available and Unavailable Pods  The pod resources of a node that are available and not available for scheduling
Desired Number of Pods  The minimum desired number of healthy pods
Status of Paused Deployments  Tells whether a deployment is paused or not
Max Unavailable Replicas during a Rolling Update  Maximum number of unavailable replicas during a rolling update

Performance Metrics for ReplicaSets

Go to Server > Kubernetes > click on the cluster > ReplicaSets > click on the monitor to view performance metrics.

Metric Name Description
Configuration Details Gives the name, created time, unique ID, labels, annotations, and more.
Total Replicas The total number of replicas per deployment
Fully Labeled Replicas The number of fully labeled replicas per ReplicaSet
Ready Replicas The number of replicas ready per ReplicaSet
Desired Pods on ReplicaSets The number of desired pods for a ReplicaSet

Performance Metrics for DaemonSets

Go to Server > Kubernetes > click on the cluster > DaemonSets > click on the monitor to view performance metrics.

Metric Name Description
Configuration Details Gives the name, created time, unique ID, labels, annotations, and more.
Available Count of DaemonSets The number of available daemonsets per deployment
Currently Scheduled DaemonSets The number of nodes that are currently running atleast one daemon pod
DaemonSets Ready to be Deployed The number of nodes that is running the daemon pod and have one or more running and ready
Updated DaemonSets The nodes that run the updated daemon pod spec

Performance Metrics for Endpoints

Go to Server > Kubernetes > click on the cluster > Endpoints > click on the monitor to view performance metrics.

Metric Name Description
Configuration Details Gives the name of the endpoint and namespace, unique ID, and created time.
Endpoints Created Network endpoints created within a Kubernetes cluster
Available Addresses The number of IP addresses available in endpoint
Address Not Ready The number of IP addresses not ready in endpoint

Performance Metrics for Horizontal Pod Autoscaler (HPA)

Go to Server > Kubernetes > click on the cluster > HPA > click on the monitor to view performance metrics.

Metric Name Description
Configuration Details Gives the name of HPA and namespace, unique ID, kind of scaleset, and created time.
Current Replicas Current number of replicas of pods managed by this autoscaler
Current vs Target CPU Utilization Current and target average CPU utilization over all pods, represented as a percentage of requested CPU. For example, 70 means that an average pod is using 70% of its requested CPU.
Current and Desired Replicas  Current and desired number of replicas of pods managed by this autoscaler
Status Condition The condition of this autoscaler

Performance Metrics for StatefulSets

Go to Server > Kubernetes > click on the cluster > StatefulSet > click on the monitor to view performance metrics.

Metric Name Description
StatefulSet Details Gives the name of the StatefulSet, namespace, the created time, and unique ID.
Config Details Gives the current and updated revision, service name, pod management policy, update strategy, and more.
StatefulSet Status Replicas The total number of replicas created by the StatefulSet.
StatefulSet Current Replicas The total number of replicas created by the current version of the StatefulSet.
StatefulSet Ready Replicas The number of ready replicas created by this StatefulSet.
StatefulSet Updated Replicas The number of replicas updated to the new version of this StatefulSet.
Replicas The desired number of replicas per StatefulSet.
Collision Count The count of hash collisions for this StatefulSet.

Performance Metrics for Persistent Volume Claim

Go to Server > Kubernetes > click on the cluster > Persistent Volume Claim (PVC) > click on the monitor to view performance metrics.

Metric Name Description
Persistent Volume Claim Details Gives the name of the PVC name, namespace, the created time, and unique ID.
Config Details Gives the volume name, mode, storage class, finalizers, and more.
Persistent Volume Claim Status Phase  Gives the current information/status of a PVC.

Security

The Site24x7 agent collects the configuration data and basic performance data using the Kubernetes API. The API version used is apps/v1. The Site24x7 agent accesses the APIs using RBAC authorization. As a part for RBAC authorization, the following objects with the below mentioned permissions are created while applying the site24x7-agent.yaml file:

  • ServiceAccount named 'site24x7' under 'default' namespace.
  • ClusterRole named 'site24x7' which includes only 'list' & 'watch' permissions to the APIs for nodes, pods etc.
  • ClusterRoleBinding named 'site24x7'.

Once the site24x7-agent.yaml file is applied, the RBAC authorization token is created and automatically mounted into the Site24x7 agent containers created via Daemonset. Using this token, the agent hits the APIs to collect data.

DaemonSet Configurations for the Site24x7 agent:

Once the site24x7-agent.yaml file is applied, a DaemonSet named site24x7-agent is created. RollingUpdate strategy is used for DaemonSet.

  • Pods are created with the same name site24x7-agent
  • The containers with 'store/site24x7/docker-agent:<version>' image are created.
    Note: ImagePullPolicy is set to 'Always'.
  • These volumes are mounted inside the containers: /etc/, /var/, /proc/, and /var/run/docker.sock

Collection of performance metrics:

kube-state-metrics is used to collect in-depth performance data. This is enabled only when kube-state-metrics.yaml file is applied. Performance data will be collected by hitting the API:

http://<KUBE_STATE_IP>:<KUBE_STATE_PORT>/metrics
<KUBE_STATE_IP> -> kube state pod ip
<KUBE_STATE_PORT> -> 8080 by default
Ensure this is enabled to view metrics like the number of containers in waiting/running/terminated state, number of available/unavailable replicas in deployment and more.

Access for Site24x7 agent:

The Site24x7 agent will have only List or Watch permissions for the Kubernetes APIs, as specified in the site24x7-agent.yaml file. The agent can only read Kubernetes objects data via the Kubernetes APIs and no write operations can be performed. The agent cannot create or update any Kubernetes objects. Data is collected by the agent only via authorized methods recommended by Kubernetes.

Reports

In the Site24x7 web client, go to Reports > Kubernetes. The following reports are available for Kubernetes monitor:

  • Summary Report
  • Availability Summary Report
  • Busy Hours Report
  • Health Trend Report
  • Performance Report

Container Logs

Collect and monitor container logs in the Kubernetes environment via the AppLogs agent running on your Linux servers.

Edit Monitor

You can choose to modify configurations for your Kubernetes cluster in the Edit Kubernetes Monitor page.

  1. In the Site24x7 web client, go to Server > Kubernetes > click on a cluster > Cluster Details
  2. Hover on the hamburger icon beside the display name. Click on Edit.
  3. Choose to edit the Display Name, association with Monitor Groups, Tags, IT Automation Templates, Exclude/include Namespaces, select/deselect Resource Groups, and edit Configuration Profiles.
  4. Under Resource Termination Settings, mute alerts when resources are terminated using the Mute Resource Termination Alerts option and remove terminated resources using the Automatically Remove Terminated Resources toggle. You can also specify how long (in days) the terminated resources should be retained in the Site24x7 web console before permanent deletion.
  5. Save your changes.

Licensing

The main Kubernetes cluster is a basic monitor. For more information, read this article.

FAQs
