APM Insight Agent

The DevOps can get complete visibility into application server performance and various components of web application using Site24x7 APM Insight. This is a perfect tool for IT Operations, Developers and Application teams to collaborate and ensure high application uptime by providing end-to-end insight into performance of individual web transactions and highlighting issues no matter where they originate.

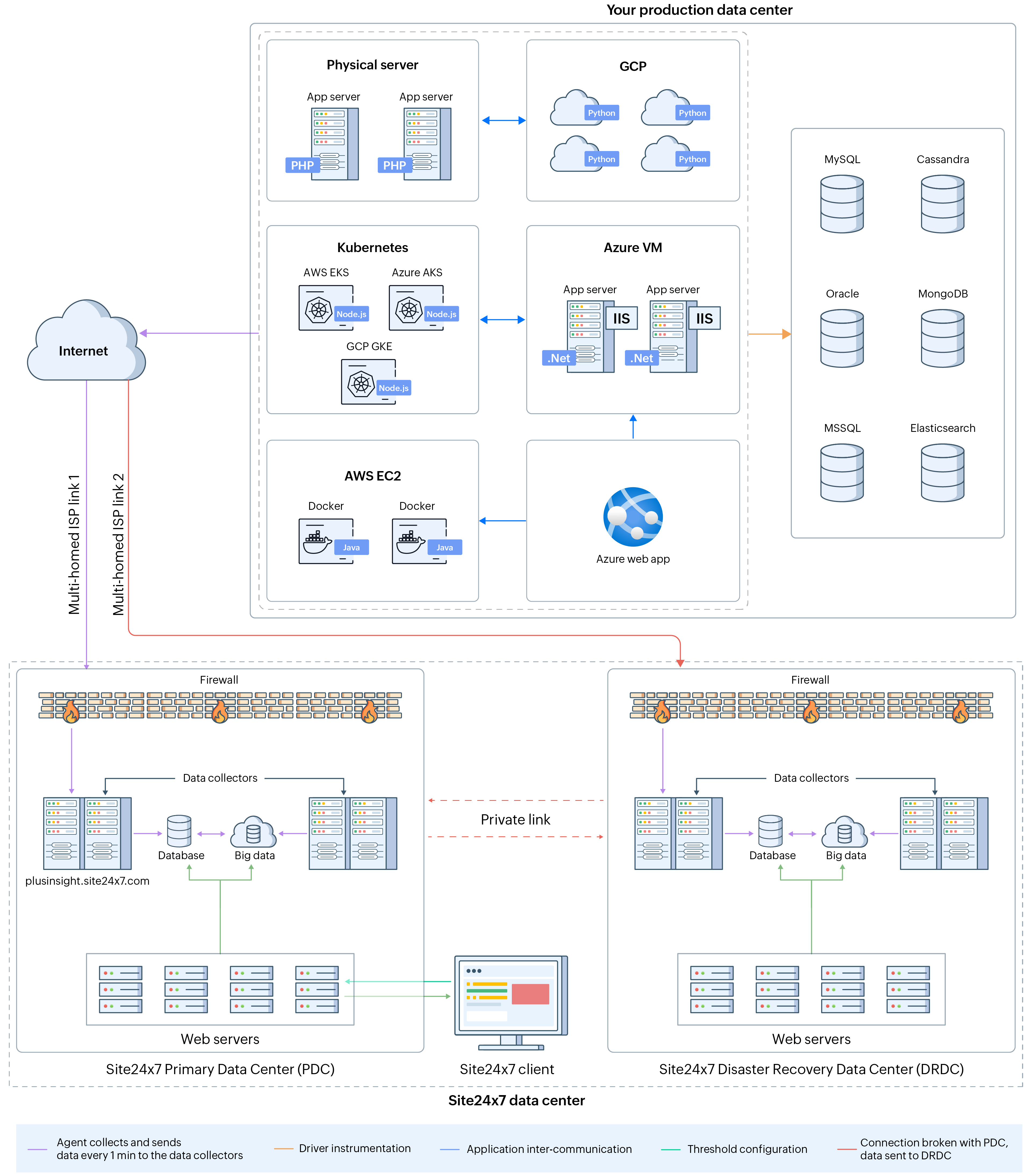

APM Insight Architecture

Site24x7 APM Insight Agent needs to be downloaded and installed on every app server. Data collections happens every one minute through a one-way HTTPS connection and the collected data gets pushed to Site24x7 Data Collector. This also ensures incessant agent-server communication. In case of the .NET agent, the agent sends the collected metrics to the Windows service which in turn pushes the data to the Data Collector. Using the data, users can keep track of application response time, identify slow database queries, throughput, measure user satisfaction levels using Apdex scores, isolate slow invocations in code and keep track of individual method traces etc.

APM Insight supports Java, .Net, Ruby on Rails, PHP, and Node.js application monitoring

APM Insight Java Agent is supported in Application Servers running with Java 1.6 or above.

.Net applications in Microsoft .Net Framework version 4.0 and above, IIS 7.0 and above.

Ruby applications 1.8.7 and higher on Rails - 3.0 and higher

PHP agent is supported on Apache2 web servers with Linux operating system running PHP  version 5.3 and above.

Node.js agent is supported for applications running on Node.js version 4 and above.

Now get started to add a APM Insight using JAVA, .NET, Ruby on Rails, PHP , and Node.js agent to monitor your web applications.
