Application Dependency Maps (Service Maps)

Application Dependency Maps gives you a complete overview of your application infrastructure along with its connection to other dependent resources. With Application dependency maps, you can view :

  • The status of your application and instances
  • Key metrics like Response time, Throughput and Status of connection
  • Number of failed request count

This helps you to detect and troubleshoot your application problems before your customers are impacted.

To view Application dependency maps:

  • Log into your Site24x7 Account > Home > APM Insight
  • Choose your application or instance
  • Click on Service Maps for topological view of your application infrastructure

Note: Application dependency maps do not need any configuration.

Metrics and Inference:

Application dependency maps can be visualized in the following views

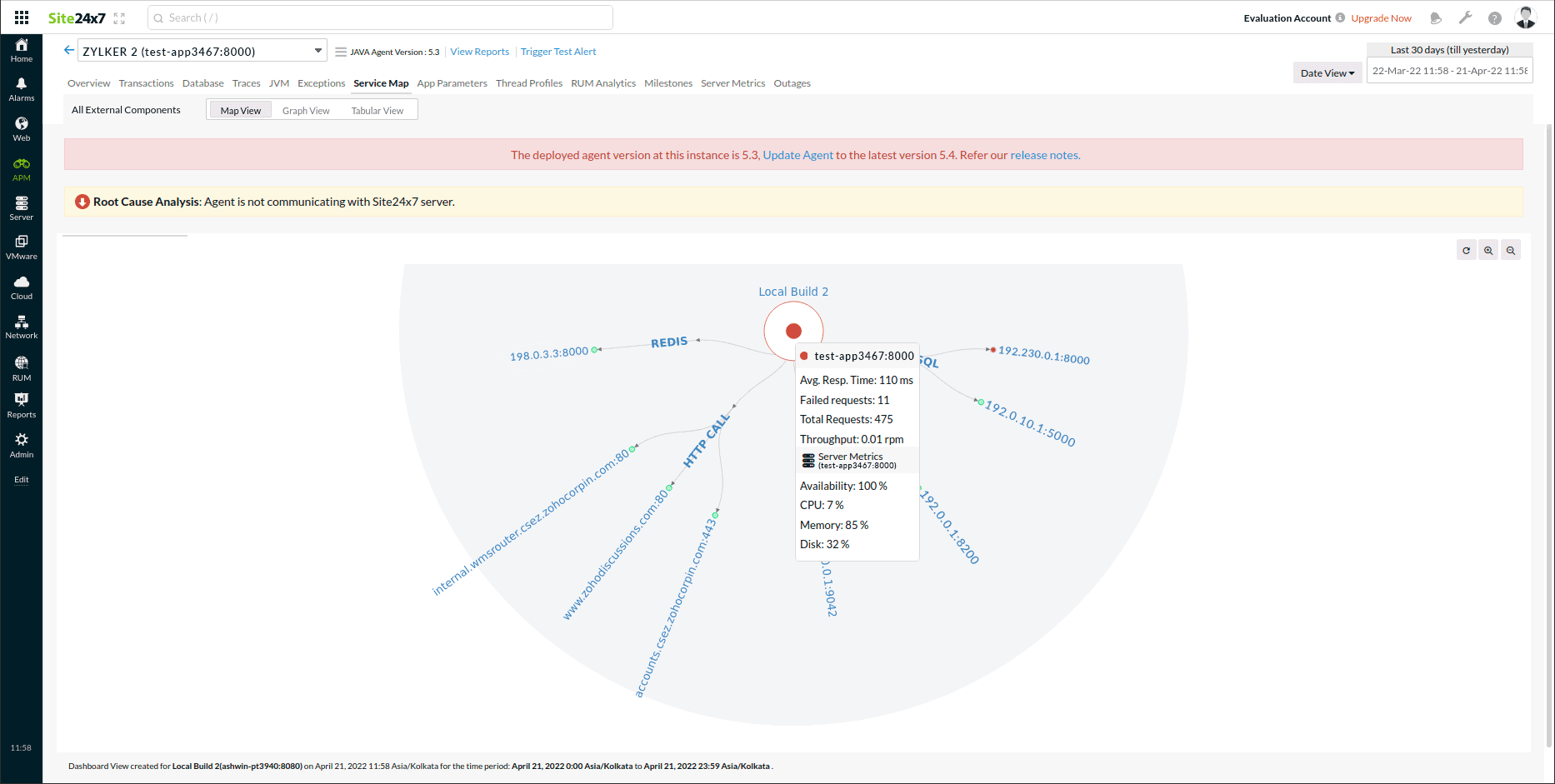

1.Map View

  • In Map view, application along with their instances are represented in the central node.

Enclosing circle represents the application.

Inner circles represent each of the application instance.

Green - Indicates application / instance is Up

Red - Indicates application / instance is Down



Application name is displayed on mouse hover of the central node.
Hovering over the inner circle displays the instance name.

  • View the status of the external components along with their key metrics on mouse hover. In case of a failed request, the component is indicated in red along with the failed request count.

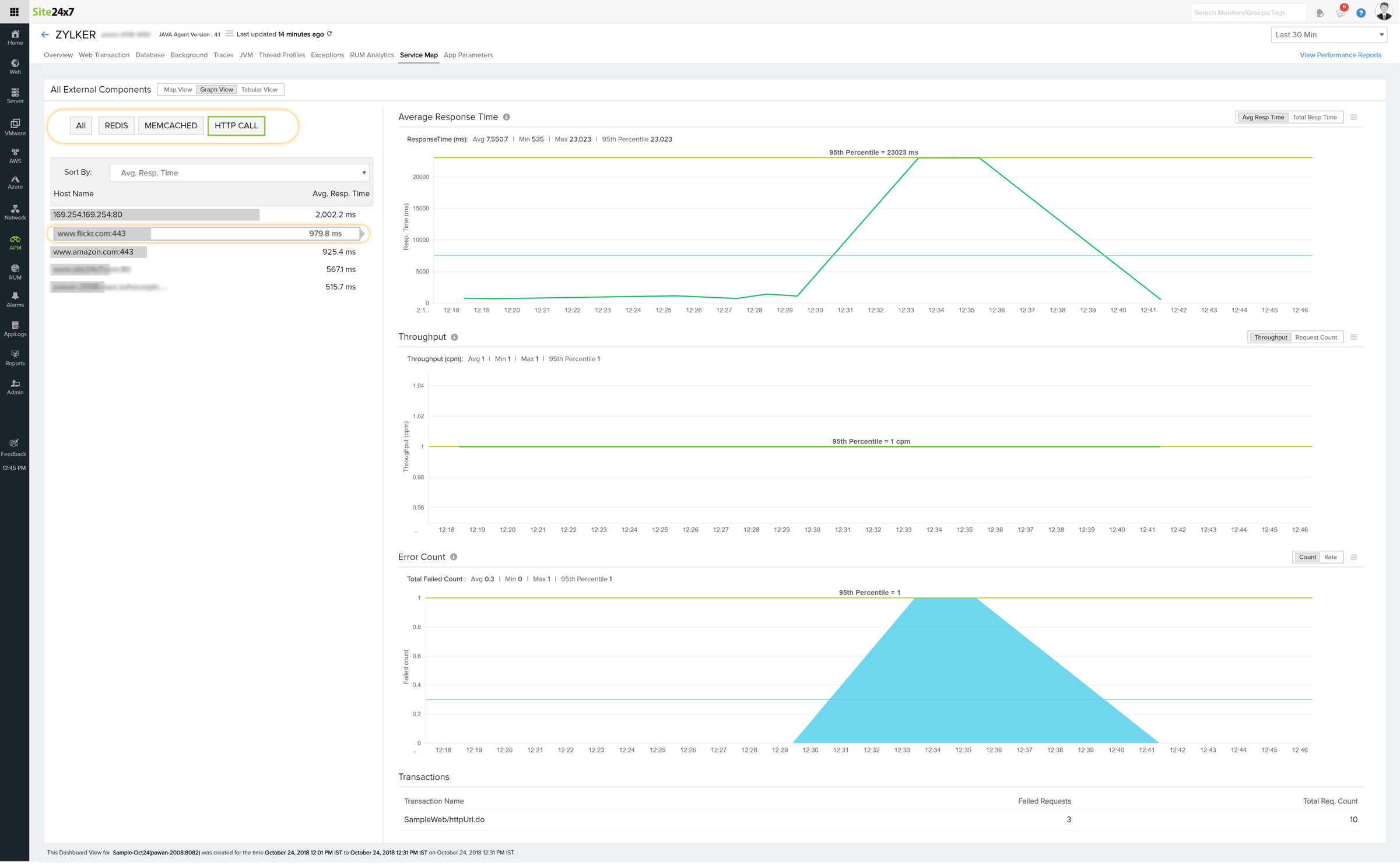

2.Graph View

The graph view lists out parameters like average response time,total response time, throughput, total request count, error count and error rate. These metrics can be viewed for all components, for all hosts corresponding to individual components and for individual hosts.

  • Graph view showing all metrics for all components

  • Graph view showing all metrics of all hosts of a particular component

  • Graph view showing all metrics of a particular host of a particular component

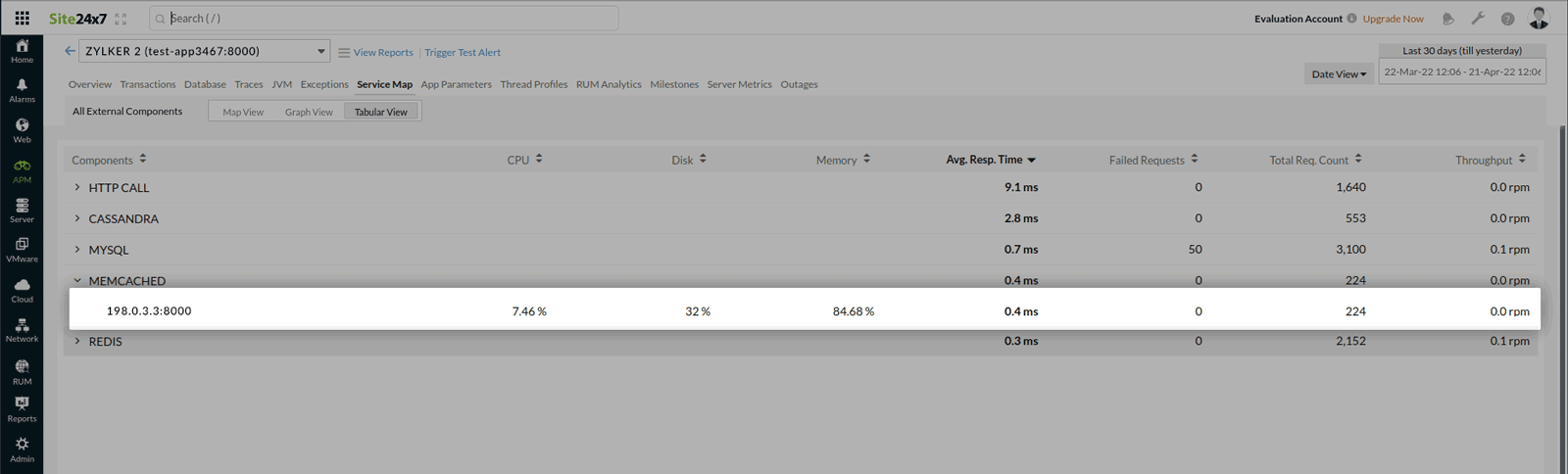

3. Tabular View

The Tabular view lists down all components along with their respective hosts. Clicking on individual component or host takes you to the corresponding graph view.




Video

Here's a quick video that shows how Service Maps help simplify the first step of troubleshooting:
