Subgroup inside a subgroup for dashboard

Hi

I have a requirement where client need to create a tree view . Example

Group1: App

  Subgroup1:DB

     InsideSubgroup:mssql

          InsideSubgroup2: server name



I know business view option is their but only let me create subgroup but I need to know can we create tree view.

Let me know if it is available in site24*7

Like (2) Reply
Replies (2)

Re: Subgroup inside a subgroup for dashboard

Dear Sameer,

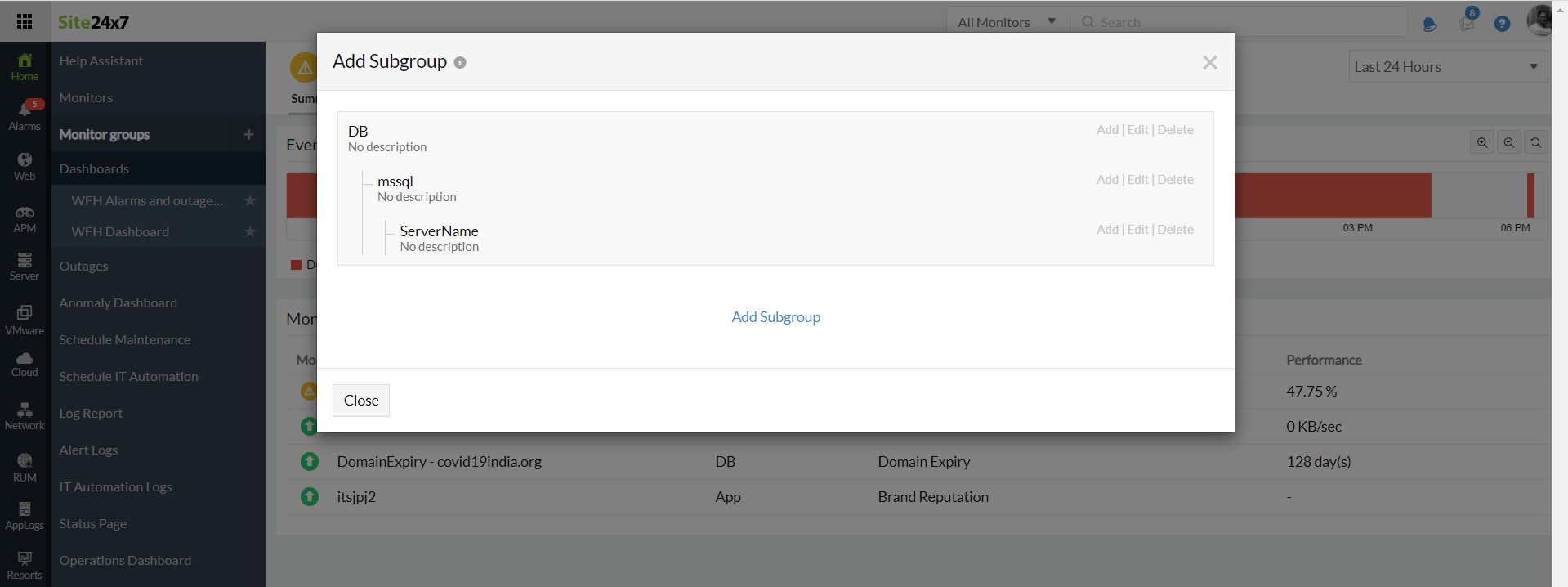

  Yes, You'll be able to create upto 5 levels in subgroups. If you have already created a monitor group already, goto to the group from Home > Monitor Groups > Click on the Hamburger icon near the Monitor Group name > Click on Subgroup > Add your 1st level subgroup (DB) > Cilck on the subgroup again > You will see a form as seen below > Click on "Add" in the subgroup you want to the next level.

You can repeat the process for upto 5 levels.

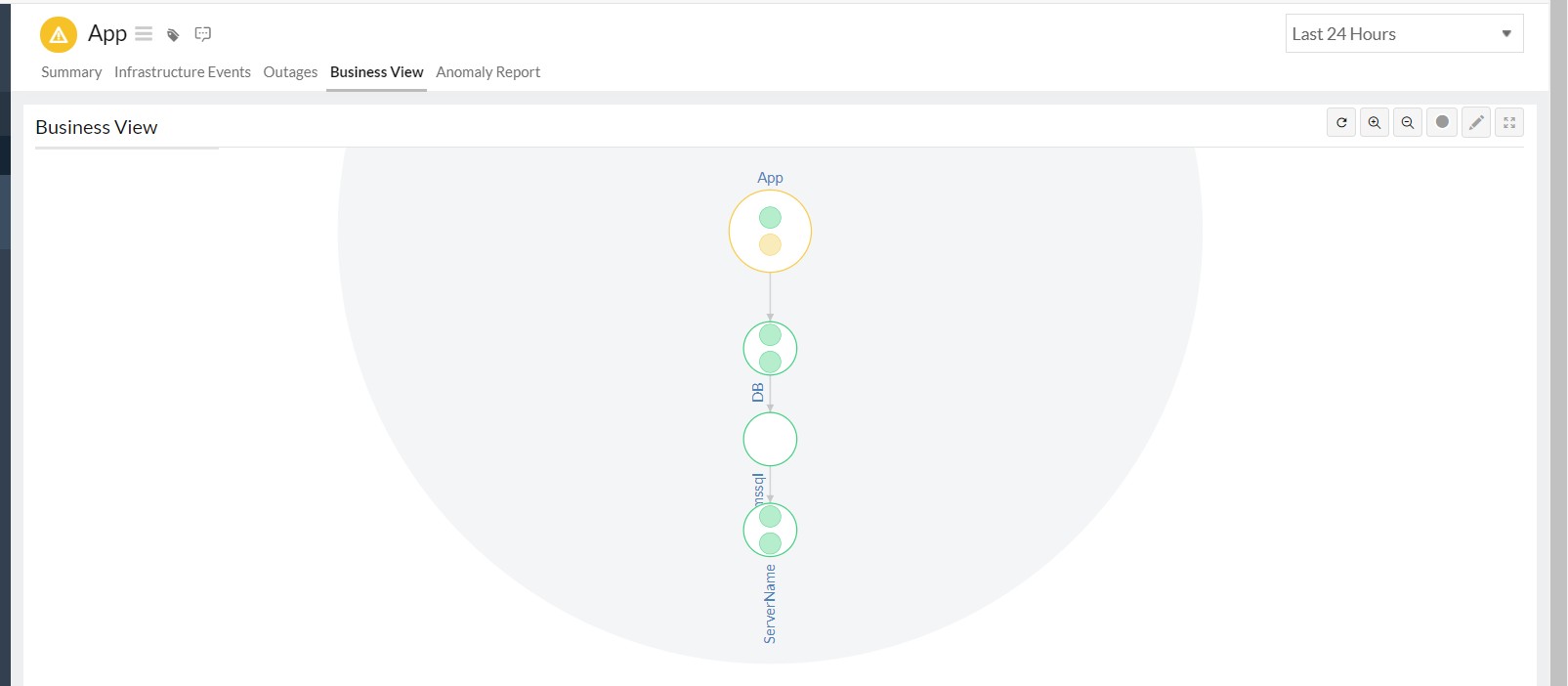

Multi-level subgroups will look like this in business view

Hope this helps.

-Jasper

PM Site24x7

Like (1) Reply

Re: Re: Subgroup inside a subgroup for dashboard

Thanks Jasper for the detail information. Appreciate your quick response.

Like (0) Reply
