Click Admin > Configuration Profiles > Threshold and Availability.
Click Add Threshold and Availability in Threshold and Availability screen.

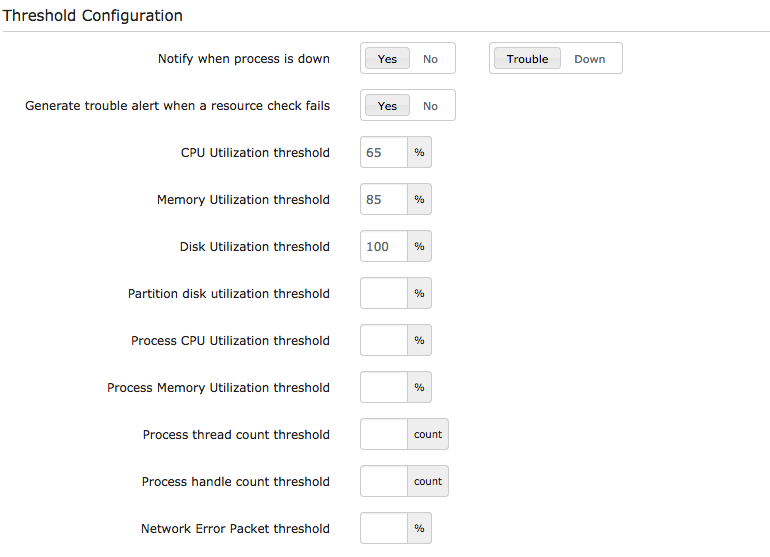

Specify the following details for adding threshold and availability for Server Monitor:
Monitor Type: Select Server Monitor from the drop down list.
Display Name: Provide a label for identification purpose.
Notify when process is down: Enable the toggle button to get notified when a process is in trouble or down.
Generate trouble alert when a resource check fails: Enable the toggle button to trigger a trouble alert when a resource check fails.
CPU Utilization threshold: Get notified with status either trouble or down when the CPU utilization crosses the configured threshold.
Memory Utilization threshold: Get notified with status either trouble or down when the Memory utilization crosses the configured threshold.
Disk Utilization threshold: Get notified with status either trouble or down when the Disk utilization crosses the configured threshold.
Partition disk utilization threshold: Get notified with status either trouble or down when the Disk utilization of partition crosses the configured threshold.
Process CPU Utilization threshold: Get notified with status either trouble or down when the overall process CPU utilization crosses the configured threshold.
Process Memory Utilization threshold: Enter the value in percentage to get notified with status either down or trouble when the overall process memory utilization crosses the configured threshold.
Process Thread Count threshold: Get notified with status either trouble or down when the overall process thread threshold count crosses the configured count.
Process Handle Count threshold: Get notified with status either trouble or down when the overall process handle threshold count crosses the configured count.
Network Error Packet threshold: Get notified with status either trouble or down when the network error packet crosses the configured threshold.
Click Save.
The threshold and availability profile created for Server Monitor will be automatically listed in the Threshold and Availability screen along with the others already created.
A default threshold and availability profile for Server Monitor will be automatically listed in the Threshold and Availability screen when the users for the first time click Admin > Inventory > Monitors > Add Monitor > Server Monitor.
Edit Threshold and Availability for Server Monitor
Click the profile which you want to edit.
Edit the parameters which needs to be changed in the Add Threshold Profile window.
Click Save.
Delete Threshold and Availability for Server Monitor
Click the profile in the Threshold and Availability screen which needs to be deleted.
This will navigate to Edit Threshold Profile window.
Click Delete.
